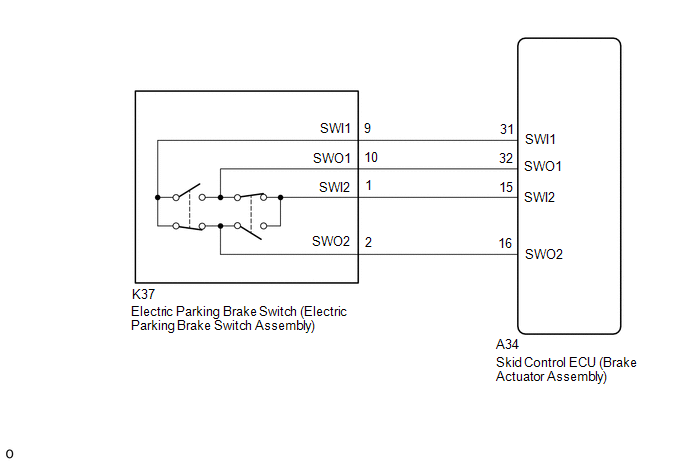

DTC C13B4: EPB Switch Malfunction [06/2017 - 10/2020]: Wiring Diagram

GTY751610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
