Installation [03/2017 - ]: Procedure

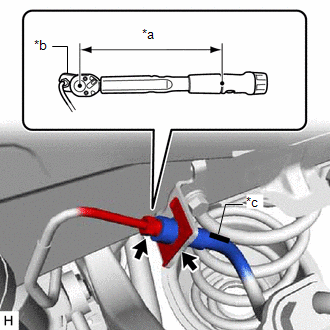

1. Install the rear flexible hose with a new clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length
   *b	Union Nut Wrench
   *c	Identification Mark

   NOTE:

   • Install the clip as far as it will go.
   • When installing the rear flexible hose, face the identification mark to the upper side of the vehicle.
2. Using a union nut wrench, connect the brake line to the rear flexible hose while holding the rear flexible hose with a wrench.

   Specified tightening torque

   Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)

   NOTE:

   • Do not kink or damage the brake line.
   • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [03/2017 - 06/2017] , or refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - 03/2020] , or refer to PRECAUTION [03/2020 - ]

   • When using a union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

     13.4 N*m (137 kgf*cm, 10 ft.*lbf)

3. Install the rear flexible hose to the rear flexible hose bracket with the bolt.

   Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

4. Install the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

   Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

   NOTE:

   Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.

Refer to BLEEDING [03/2017 - ]

Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - ]
