Components [03/2017 - ]

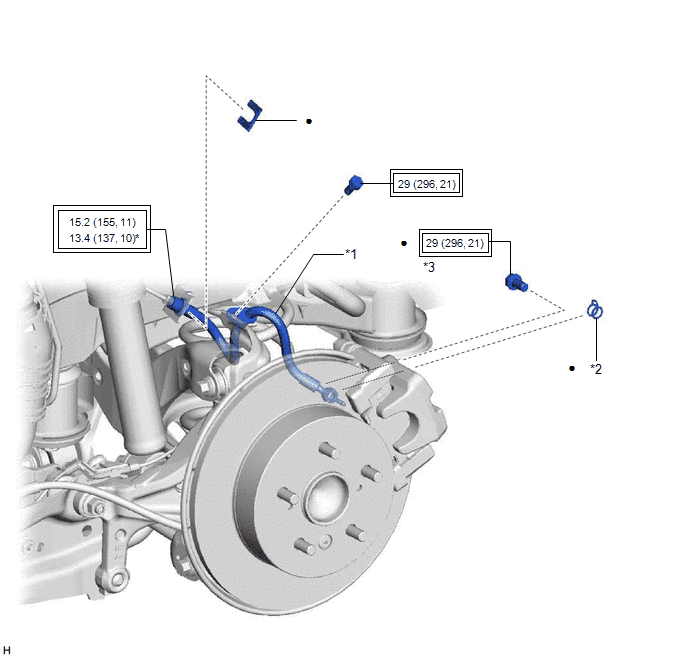

Fig 1: Rear Brake Flexible Hose (W/O Electric Parking Brake System) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
| *1 | REAR FLEXIBLE HOSE | *2 | GASKET |
| *3 | UNION BOLT | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |
