Removal [03/2017 - ]: Procedure

  1. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1 [03/2017 - 06/2017] , or refer to PROCEDURE - Step 1 [06/2017 - ]

  2. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  3. DISCONNECT REAR FLEXIBLE HOSE

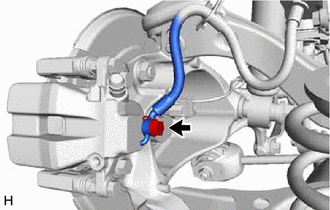

    1. Remove the union bolt and gasket, and disconnect the rear flexible hose from the rear disc brake cylinder assembly.
      GTY773493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR DISC BRAKE CYLINDER ASSEMBLY

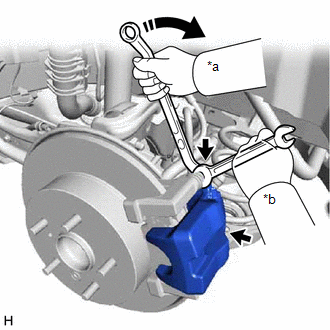

    1. Hold the 2 rear disc brake cylinder slide pins and remove the 2 bolts and rear disc brake cylinder assembly from the rear disc brake cylinder mounting.
      GTY755219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
  5. REMOVE REAR DISC BRAKE PAD

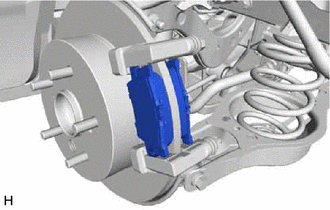

    1. Remove the 2 rear disc brake pads from the rear disc brake cylinder mounting.
      GTY773483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR DISC BRAKE PAD SUPPORT PLATE
    NOTE:
    • If the rear disc brake pad support plate is securely installed, do not remove the rear disc brake pad support plate from the rear disc brake cylinder mounting as it can be reused.
    • As the rear disc brake pad support plate is a non-reusable part, if the rear disc brake pad support plate is removed from the rear disc brake cylinder mounting, it must be replaced with a new one.
    • If the rear disc brake pad support plate is loose or deformed after being installed to the rear disc brake cylinder mounting, replace it with a new one.

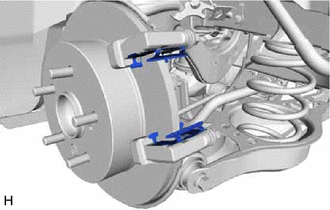

    1. Remove the 2 rear disc brake pad support plates from the rear disc brake cylinder mounting.
      GTY763012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN (for Upper Side)
    1. Remove the rear disc brake cylinder slide pin from the rear disc brake cylinder mounting.
      GTY763009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN (for Lower Side)
    1. Remove the rear disc brake cylinder slide pin from the rear disc brake cylinder mounting.
      GTY763010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

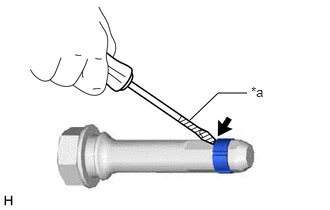

    2. Using a screwdriver with its tip wrapped with protective tape, remove the rear disc brake cylinder slide bushing from the rear disc brake cylinder slide pin.
      NOTE:

      Do not damage the rear disc brake cylinder slide pin.

      GTY597068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  10. REMOVE REAR DISC BRAKE BUSHING DUST BOOT
    1. Remove the 2 rear disc brake bushing dust boots from the rear disc brake cylinder mounting.
      GTY763008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR DISC BRAKE CYLINDER MOUNTING

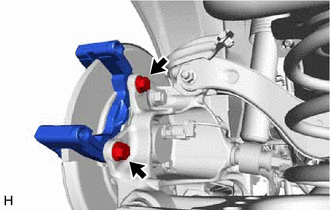

    1. Remove the 2 bolts and rear disc brake cylinder mounting from the rear axle carrier sub-assembly.
      GTY773484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE PARKING BRAKE SHOE ADJUSTING HOLE PLUG
    1. Remove the parking brake shoe adjusting hole plug from the rear disc.
  13. REMOVE REAR DISC
    1. Put matchmarks on the rear disc and the rear axle hub and bearing assembly.
      GTY742088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Release the parking brake and remove the rear disc.
      GTY254627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the disc cannot be removed easily, use a screwdriver to turn the shoe adjuster as shown in the illustration in order to contract the parking brake shoes.
