Reassembly [03/2017 - ]: Procedure

  1. TEMPORARILY TIGHTEN REAR DISC BRAKE BLEEDER PLUG
    1. Temporarily install the rear disc brake bleeder plug to the rear disc brake cylinder.

      HINT:

      Fully tighten the rear disc brake bleeder plug after bleeding the system.

  2. INSTALL REAR DISC BRAKE BLEEDER PLUG CAP
    1. Install the rear disc brake bleeder plug cap to the rear disc brake bleeder plug.
  3. INSTALL PISTON SEAL
    1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new piston seal.

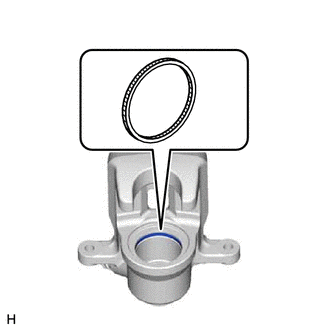

      GTY761361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lithium Soap Base Glycol Grease
    2. Install the piston seal to the rear disc brake cylinder.
      NOTE:

      Securely install the piston seal to the groove of the rear disc brake cylinder.

  4. INSTALL REAR DISC BRAKE PISTON
    1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a new cylinder boot.

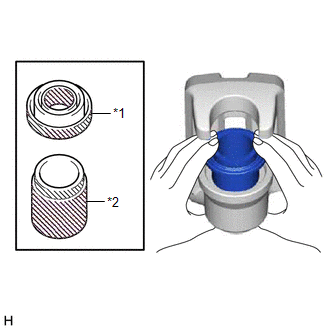

      GTY763202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Cylinder Boot
      *2 Rear Disc Brake Piston
      Lithium Soap Base Glycol Grease
    2. Install the cylinder boot to the rear disc brake piston.
    3. Apply a light layer of lithium soap base glycol grease to the contact surfaces of the rear disc brake piston, and install it to the rear disc brake cylinder.
      NOTE:

      Do not install the rear disc brake piston forcibly in the rear disc brake cylinder.

  5. INSTALL CYLINDER BOOT
    1. Install the cylinder boot to the rear disc brake cylinder.
      NOTE:

      Securely install the cylinder boot to the groove of the rear disc brake cylinder and rear disc brake piston.

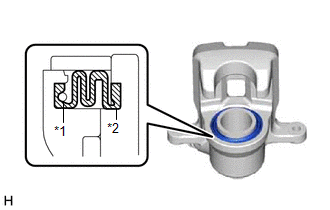

      GTY769012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Disc Brake Piston Set Ring
      *2 Cylinder Boot
    2. Using a screwdriver with its tip wrapped with protective tape, install a new rear disc brake piston set ring.
      NOTE:
      • Securely install the rear disc brake piston set ring to the outer groove of the cylinder boot.
      • Do not damage the cylinder boot.
