Components [03/2017 - ]

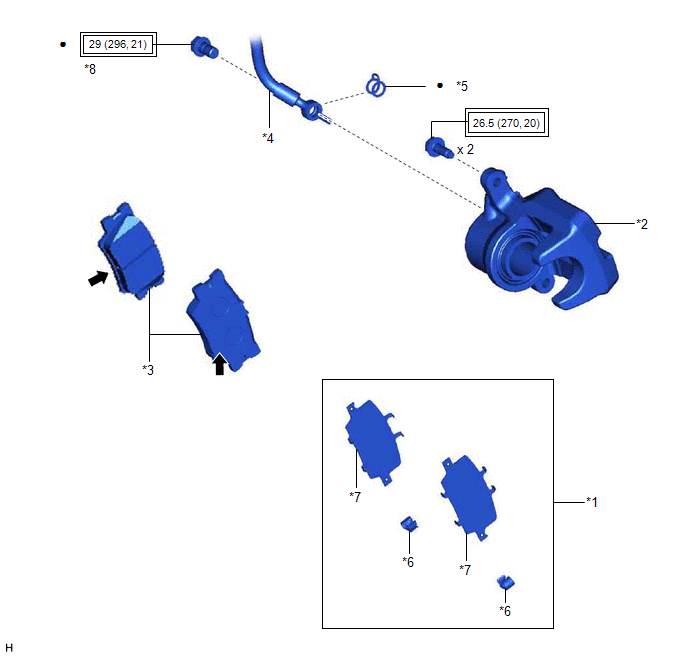

Fig 1: Rear Brake (W/O Electric Parking Brake System) Replacement Components With Torque Specifications (1 Of 3)
| Callout | Description | Callout | Description |
| *1 | REAR DISC BRAKE ANTI-SQUEAL SHIM KIT | *2 | REAR DISC BRAKE CYLINDER ASSEMBLY |
| *3 | REAR DISC BRAKE PAD | *4 | REAR FLEXIBLE HOSE |
| *5 | GASKET | *6 | REAR DISC BRAKE PAD WEAR INDICATOR PLATE |
| *7 | REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM | *8 | UNION BOLT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Brake shim grease (Part No. 08887-80409) | - | - |

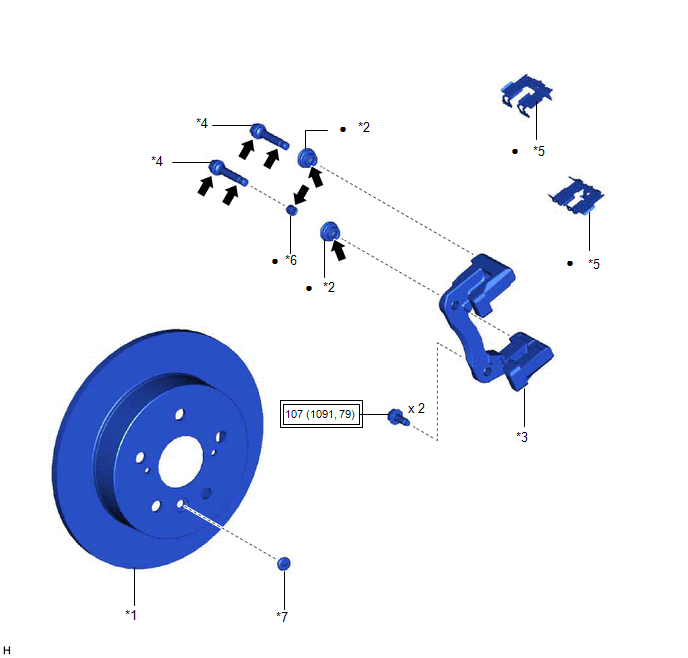

Fig 2: Rear Brake (W/O Electric Parking Brake System) Replacement Components With Torque Specifications (2 Of 3)
| Callout | Description | Callout | Description |
| *1 | REAR DISC | *2 | REAR DISC BRAKE BUSHING DUST BOOT |
| *3 | REAR DISC BRAKE CYLINDER MOUNTING | *4 | REAR DISC BRAKE CYLINDER SLIDE PIN |
| *5 | REAR DISC BRAKE PAD SUPPORT PLATE | *6 | REAR DISC BRAKE CYLINDER SLIDE BUSHING |
| *7 | PARKING BRAKE SHOE ADJUSTING HOLE PLUG | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |

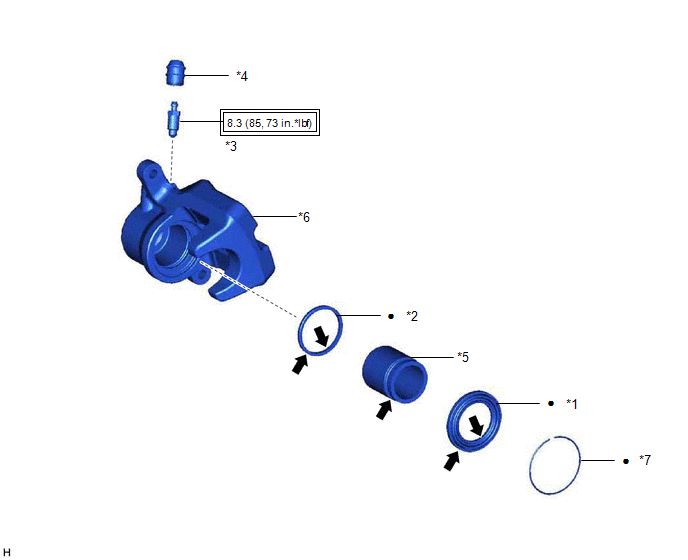

Fig 3: Rear Brake (W/O Electric Parking Brake System) Replacement Components With Torque Specifications (3 Of 3)
| Callout | Description | Callout | Description |
| *1 | CYLINDER BOOT | *2 | PISTON SEAL |
| *3 | REAR DISC BRAKE BLEEDER PLUG | *4 | REAR DISC BRAKE BLEEDER PLUG CAP |
| *5 | REAR DISC BRAKE PISTON | *6 | REAR DISC BRAKE CYLINDER |
| *7 | REAR DISC BRAKE PISTON SET RING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
