Components [06/2017 - ]

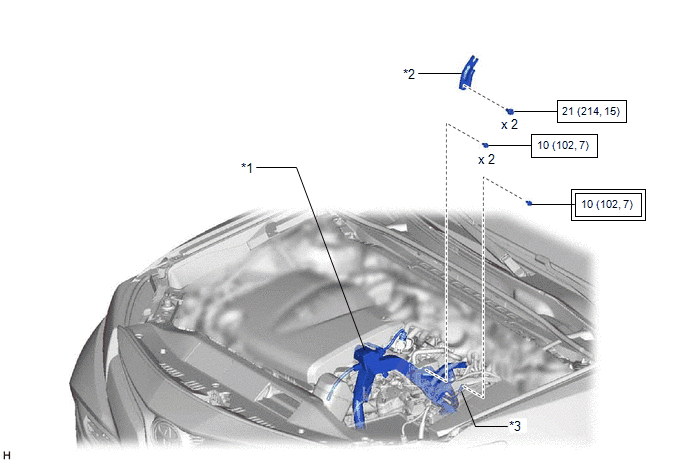

| Callout | Description | Callout | Description |
| *1 | ENGINE WIRE | *2 | NO. 2 SURGE TANK STAY |
| *3 | EARTH WIRE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

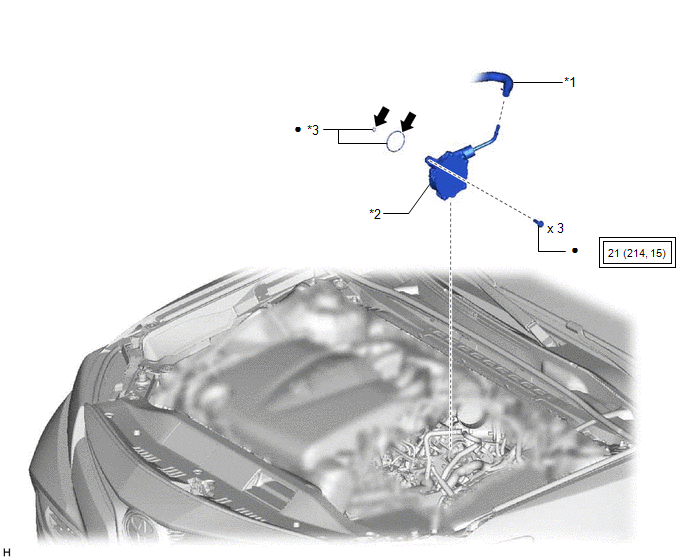

| Callout | Description | Callout | Description |
| *1 | AIR TUBE | *2 | VACUUM PUMP ASSEMBLY |
| *3 | O-RING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Engine oil | * | Precoated part |
