Components [03/2017 - 06/2017]

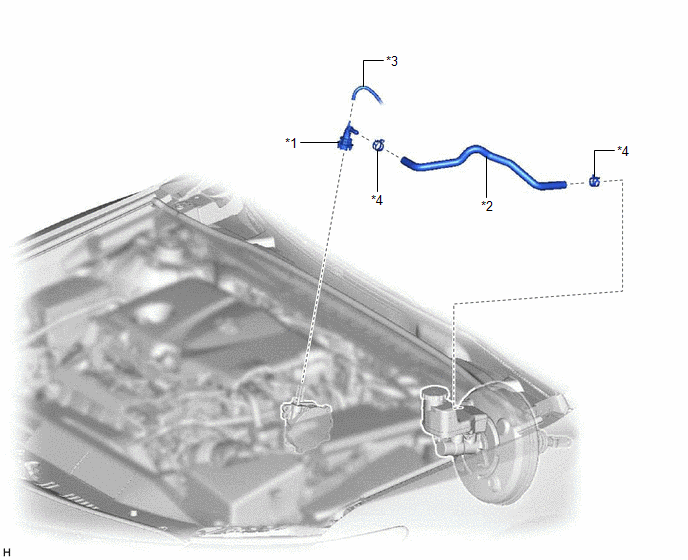

Fig 1: Brake Vacuum Hose Replacement Components (03/2017 - 06/2017)
GTY744888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 VACUUM HOSE CONNECTOR *2 UNION TO CHECK VALVE HOSE
*3 VACUUM HOSE *4 CLIP
