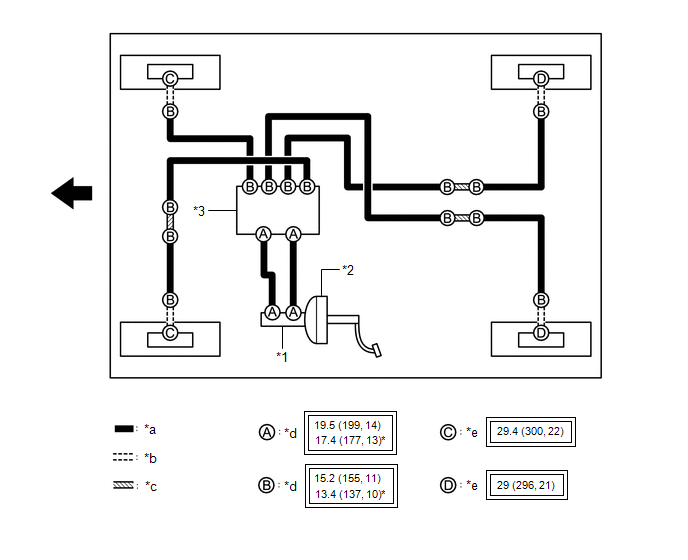

System Diagram [03/2017 - ]
HINT:
See the layout drawing to confirm the locations and tightening torque of flexible hoses and brake lines.
| *1 | Brake Master Cylinder Sub-assembly | *2 | Brake Booster Assembly |
| *3 | Brake Actuator Assembly | - | - |
| *a | Brake Line | *b | Flexible Hose |
| *c | Brake Tube Way | *d | Union Nut |
| *e | Union Bolt | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench | |
| Front | - | - |
