Components [09/2019 - ]

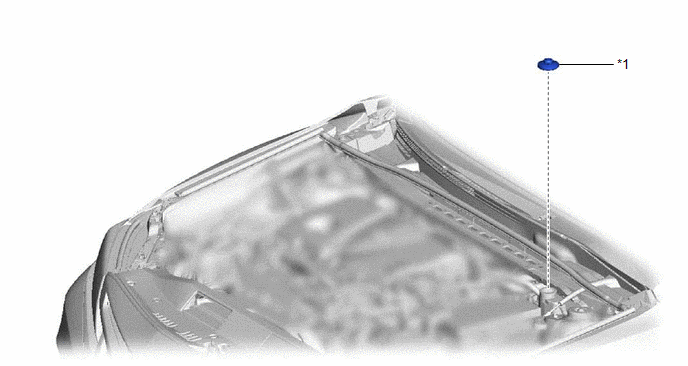

Fig 1: Brake Fluid Replacement Components [09/2019 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY

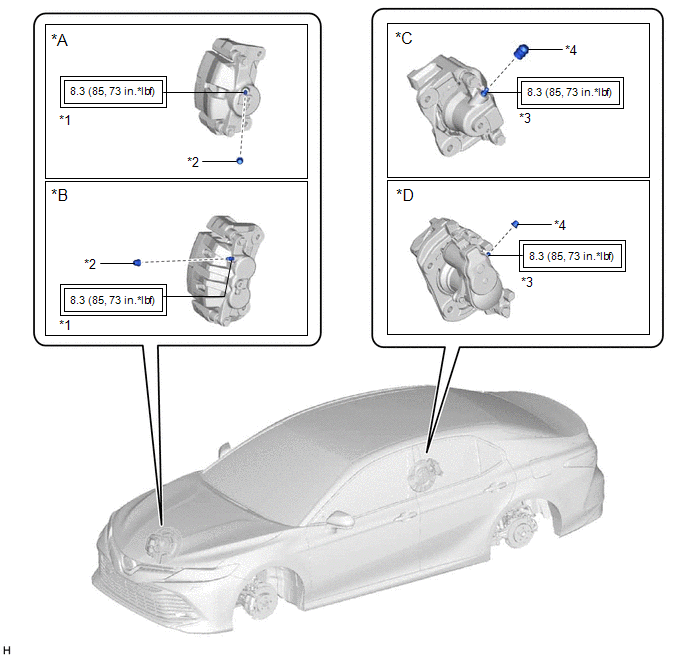

Fig 2: Brake Fluid Replacement Components With Torque Specifications [09/2019 - ] (2 Of 2)

Callout	Description	Callout	Description
*A	except 2-Pot Caliper	*B	For 2-Pot Caliper
*C	w/o Electric Parking Brake System	*D	w/ Electric Parking Brake System
*1	FRONT DISC BRAKE BLEEDER PLUG	*2	FRONT DISC BRAKE BLEEDER PLUG CAP
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-
