Components [06/2017 - 09/2019]

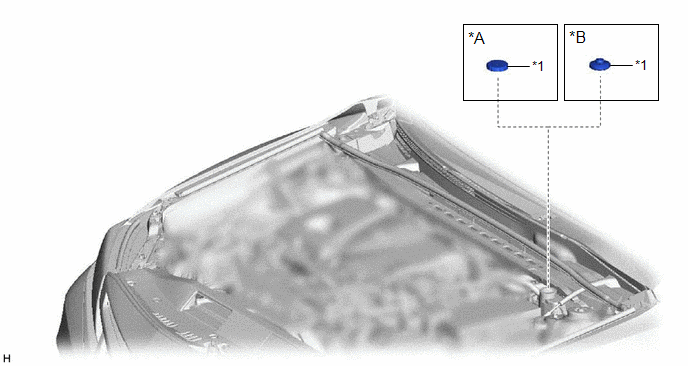

Fig 1: Brake Fluid Replacement Components [06/2017 - 09/2019] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	For TMC Made	*B	For TMMK Made
*1	BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY	-	-

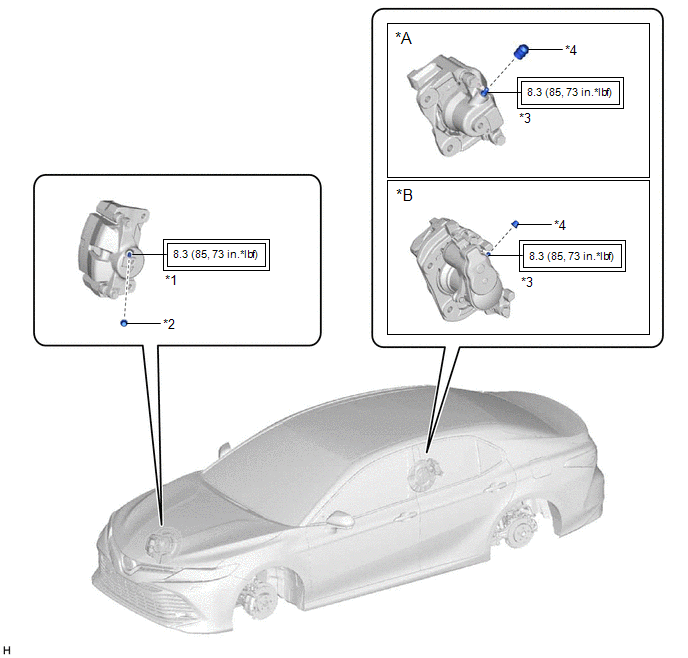

Fig 2: Brake Fluid Replacement Components With Torque Specifications [06/2017 - 09/2019] (2 Of 2)

Callout	Description	Callout	Description
*A	w/o Electric Parking Brake System	*B	w/ Electric Parking Brake System
*1	FRONT DISC BRAKE BLEEDER PLUG	*2	FRONT DISC BRAKE BLEEDER PLUG CAP
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-
