Components [03/2017 - 06/2017]
| *1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
| Callout | Description | Callout | Description |
| *1 | FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| *T1 | Bolt color black: 8.0 N*m (82 kgf*cm, 71 in.*lbf) Bolt color silver: 8.9 N*m (91 kgf*cm, 79 in.*lbf) |
- | - |
| Callout | Description | Callout | Description |

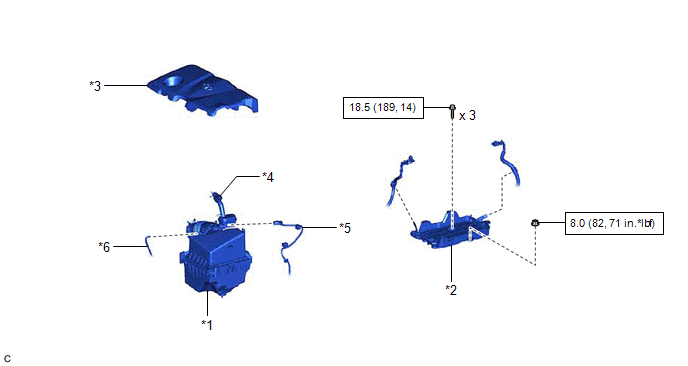

| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | BATTERY CLAMP SUB-ASSEMBLY |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | NO. 2 VENTILATION HOSE |
| *5 | MASS AIR FLOW METER SUB-ASSEMBLY CONNECTOR | *6 | VACUUM HOSE |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
| *1 | BRAKE BOOSTER ASSEMBLY | *2 | BRAKE BOOSTER GASKET |
| *3 | LOCK NUT | *4 | PUSH ROD PIN |
| *5 | UNION TO CHECK VALVE HOSE | *6 | BRAKE MASTER CYLINDER PUSH ROD CLEVIS |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |

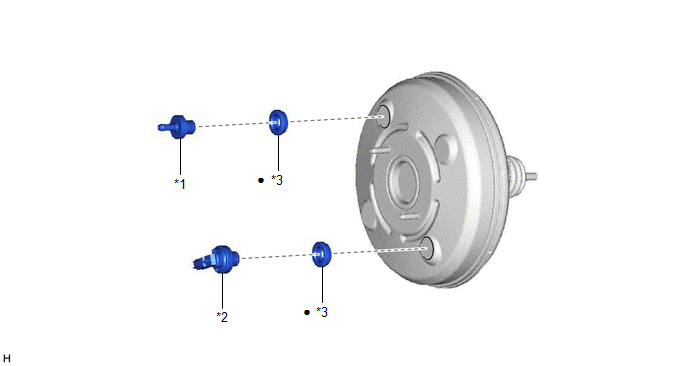

| *1 | BRAKE VACUUM CHECK VALVE ASSEMBLY | *2 | VACUUM WARNING SWITCH ASSEMBLY |
| *3 | CHECK VALVE GROMMET | - | - |
| • | Non-reusable part | - | - |
