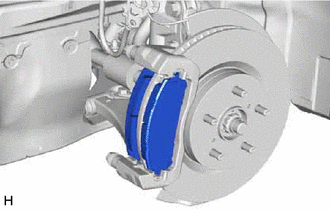

Removal [09/2019 - ]: Procedure

Refer to PROCEDURE - Step 1

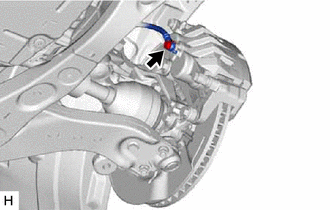

1. Remove the union bolt and gasket, and disconnect the front flexible hose from the front disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

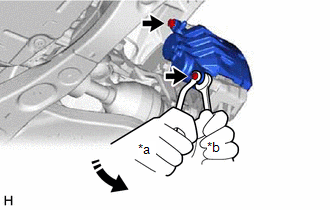

1. Hold the 2 front disc brake cylinder slide pins and remove the 2 bolts and front disc brake cylinder assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

1. Remove the 2 anti-squeal springs.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 front disc brake pads from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 3

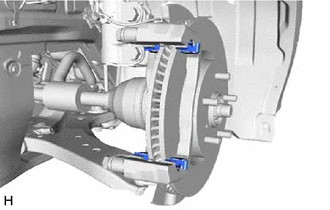

1. Remove the 4 front disc brake pad support plates from the front disc brake cylinder mounting.
   NOTE:

   Each front disc brake pad support plate has a different shape. Be sure to put an identification mark on each front disc brake pad support plate so that it can be reinstalled to its original position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 front disc brake cylinder slide pins from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

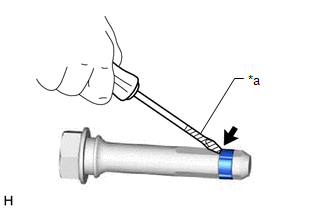

2. Using a screwdriver with its tip wrapped with protective tape, remove the front disc brake cylinder slide bushing from the front disc brake cylinder slide pin (lower side).
   NOTE:

   Do not damage the front disc brake cylinder slide pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

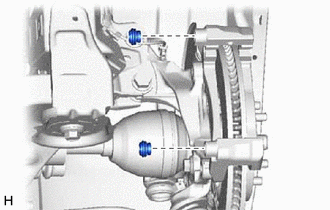

1. Remove the 2 front disc brake bushing dust boots from the front disc brake cylinder mounting.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

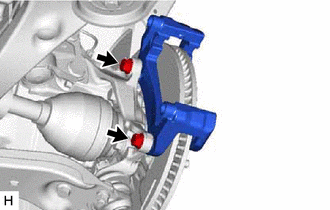

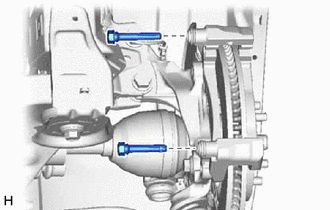

1. Remove the 2 bolts and front disc brake cylinder mounting from the steering knuckle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

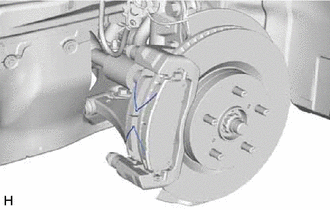

1. Put matchmarks on the front disc and the front axle hub sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

2. Remove the front disc.
