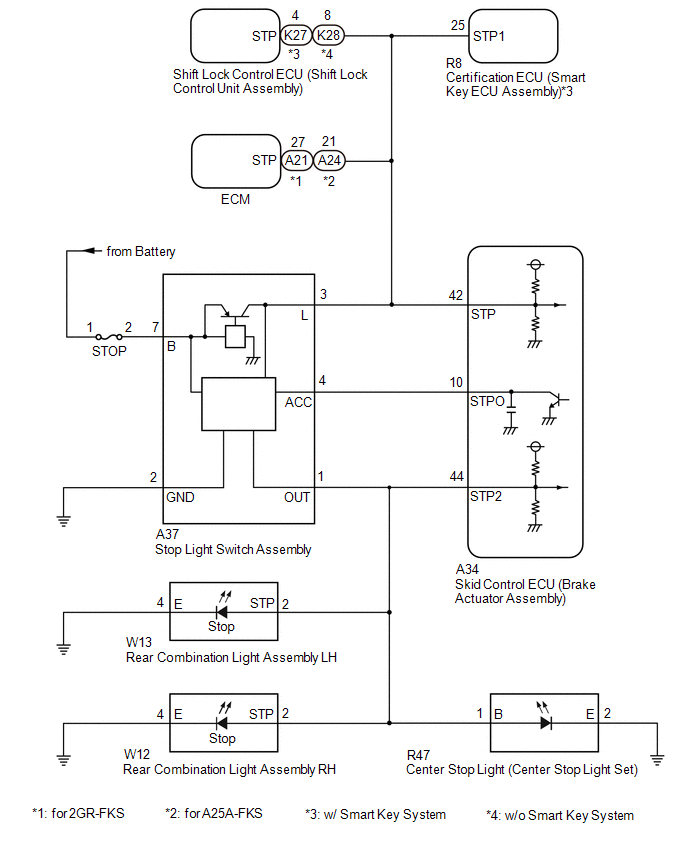

DTC C1380: Stop Light Control Relay Malfunction [03/2020 - 10/2020]: Wiring Diagram

GTY974726

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
