Panoramic Moon Roof System - Diagnostic Codes & Symptom Tests (Except Hybrid)
>>
Panoramic Moon Roof System
>>
Panoramic Moon Roof System does not Operate [06/2017 - ]
>>

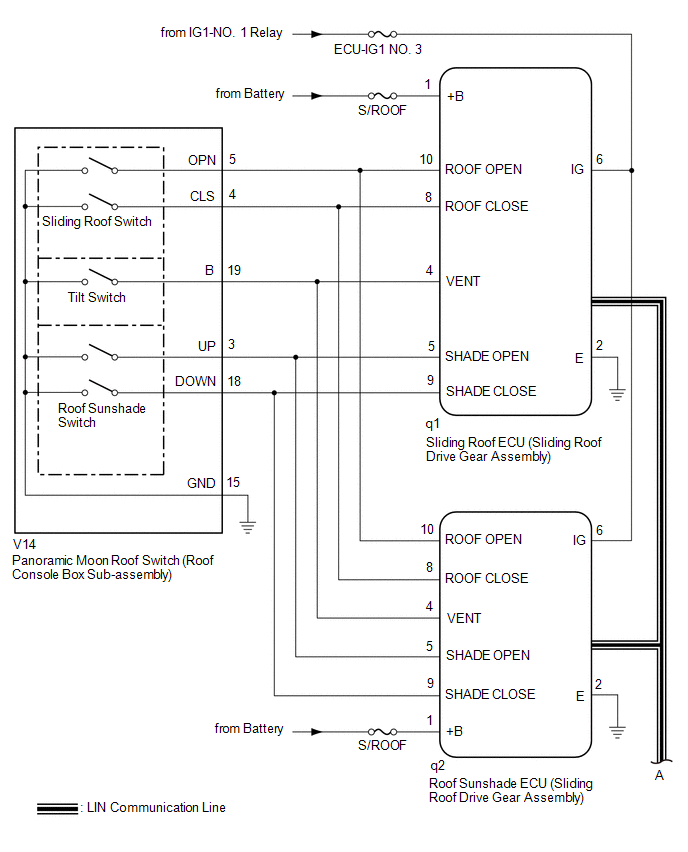

Wiring Diagram
Panoramic Moon Roof System does not Operate [06/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
