- INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH
- w/o Climate Control Seat System:
- Engage the 8 hooks to install the lumbar support adjuster assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Connect the connector and engage the clamp.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Connect the connector first.
- w/ Climate Control Seat System:

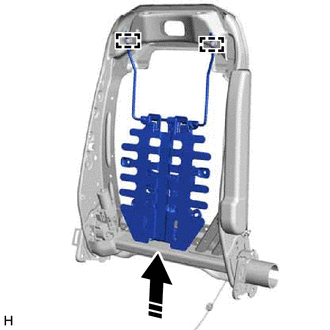

- Engage the 2 guides to install the lumbar support adjuster assembly LH as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Install in this Direction |
- Engage the 2 claws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Connect the connector and engage the clamp.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Connect the connector first.
- INSTALL SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
- Engage the 3 hooks and 2 claws to install the seatback climate control blower.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Engage the 3 hooks first.
- Connect the connector and engage the wire harness clamp.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Connect the connector first.
- INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
Refer to PROCEDURE - Step 25
- INSTALL FRONT SEAT HEADREST SUPPORT
Refer to PROCEDURE - Step 26
- INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
Refer to PROCEDURE - Step 27
- INSTALL FRONT SEAT INNER CUSHION SHIELD LH
Refer to PROCEDURE - Step 32
- INSTALL FRONT SEAT CUSHION SHIELD LH
Refer to PROCEDURE - Step 33
- INSTALL FRONT SEAT FRONT CUSHION SHIELD LH
Refer to PROCEDURE - Step 34
- CONNECT SEPARATE TYPE FRONT SEATBACK COVER
Refer to PROCEDURE - Step 35
- INSTALL FRONT SEAT ASSEMBLY LH
Refer to INSTALLATION [09/2019 - ]
