Removal [03/2017 - 06/2017]: Procedure

  1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER (w/o Pre-collision System)

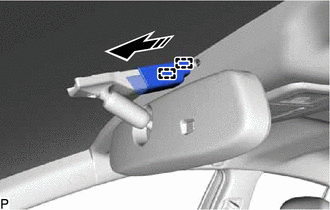

    1. Disengage the 2 guides and slide the inner rear view mirror stay holder cover as shown in the illustration.
      GTY761583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Slide

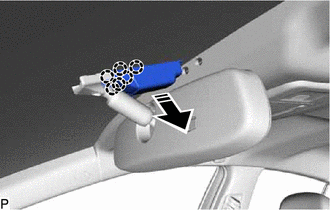

    2. Disengage the 6 claws to remove the inner rear view mirror stay holder cover as shown in the illustration.
      GTY762173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o Pre-collision System)

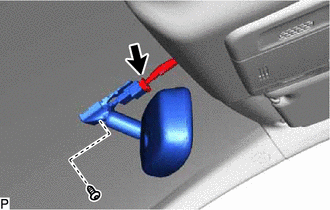

    1. Disconnect the connector.
      GTY765715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T20 "TORX" socket wrench, remove the screw.

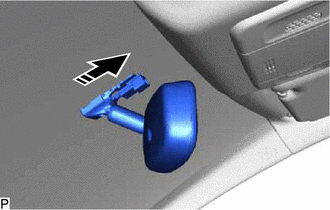

    3. Slide the inner rear view mirror assembly as shown in the illustration to remove it.
      GTY765650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 1

  4. REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)

    Refer to PROCEDURE - Step 2

  5. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ Pre-collision System)

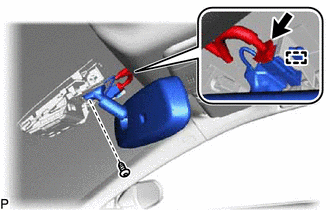

    1. Disconnect the connector.
      GTY774067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Using a T20 "TORX" socket wrench, remove the screw.

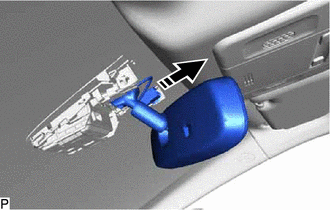

    4. Slide the inner rear view mirror assembly as shown in the illustration to remove it.
      GTY749654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
