Reassembly [08/2021 - ]: Procedure

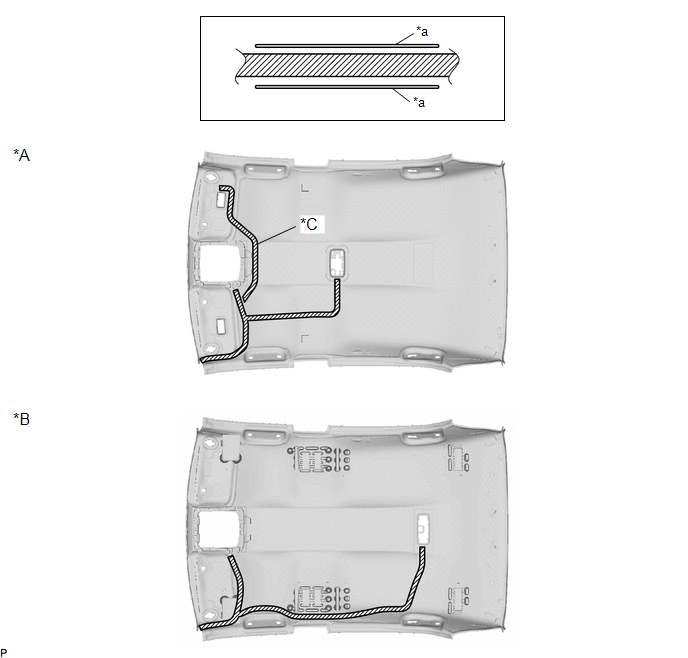

1. Apply butyl tape as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Room Light Assembly	*B	w/ Spot Light Assembly
   *C	w/ Vanity Light	-	-
   *a	Marking	-	-
   	Butyl Tape	-	-

   NOTE:

   Securely attach the butyl tape.

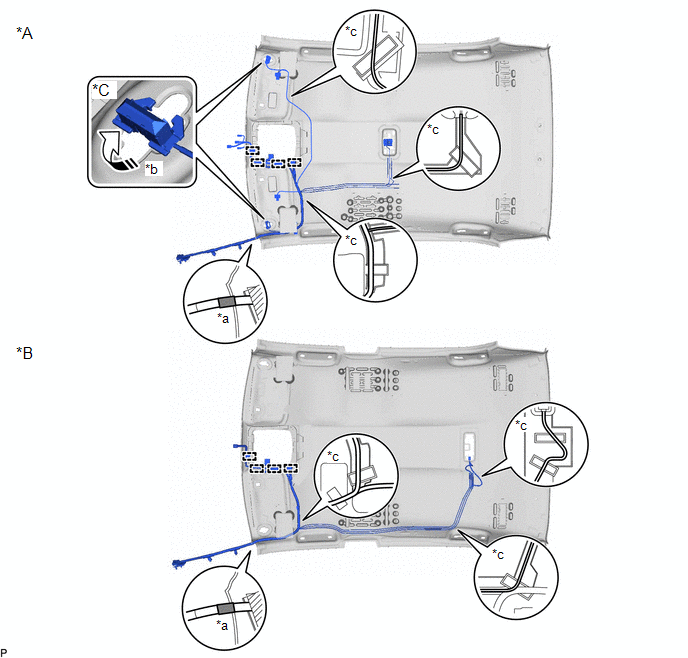

2. Align the marking tape on the No. 1 roof wire with the tab on the front side of the roof headlining.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Room Light Assembly	*B	w/ Spot Light Assembly
   *C	w/ Vanity Light	-	-
   *a	Marking Tape	*b	90°
   *c	Adjustment Area	-	-

3. Engage the 4 clamps.
4. w/ Vanity Light:
   1. Turn the 2 visor connectors clockwise approximately 90° to install them to the roof headlining.
5. Attach the No. 1 roof wire with the butyl tape.
   NOTE:

   • Securely attach the No. 1 roof wire.
   • If any of the No. 1 roof wire is left loose, it will cause an abnormal noise.
   • Make sure to attach the No. 1 roof wire without leaving any of it loose.

   HINT:

   Secure the extra length of the No. 1 roof wire in the adjustment area.

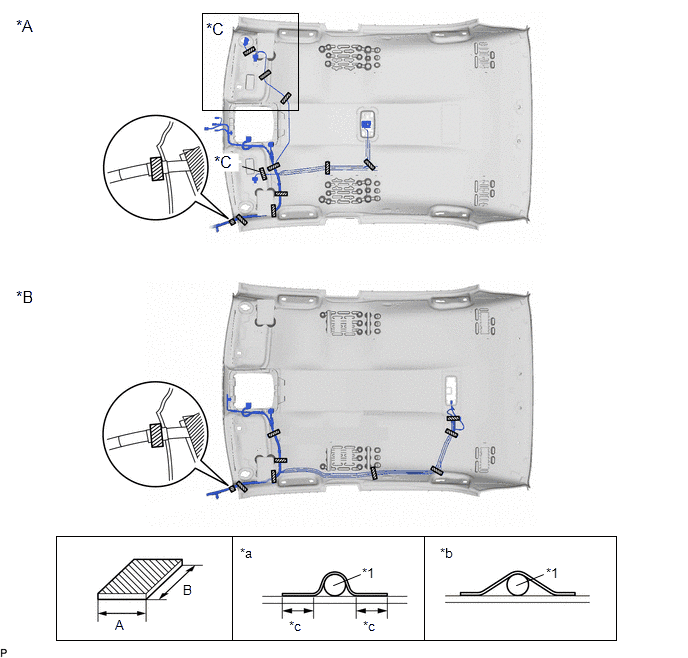

6. Install the No. 1 roof wire to the roof headlining with adhesive tape.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Room Light Assembly	*B	w/ Spot Light Assembly
   *C	w/ Vanity Light	-	-
   *1	No. 1 Roof Wire	-	-
   *a	Correct	*b	Incorrect
   *c	10 mm (0.394 in.) or more	-	-
   	Adhesive Tape	-	-

   ADHESIVE TAPE SIZE



   Area	Dimension	Area	Dimension
   A	20 mm (0.787 in.)	B	80 mm (3.15 in.) or more

   NOTE:

   • Apply the tape securely in place.
   • Do not touch the adhesive surface when applying the tape to prevent adhesion failure.

1. Apply butyl tape as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Moon Roof	*B	for Panoramic Moon Roof
   *a	Marking	-	-
   	Butyl Tape	-	-

   NOTE:

   Securely attach the butyl tape.

2. Align the marking tape on the No. 1 roof wire with the tab on the front side of the roof headlining.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Moon Roof	*B	for Panoramic Moon Roof
   *a	Marking Tape	*b	90°
   *c	Adjustment Area	-	-
   	Rotation Direction	-	-

   1. Engage each clamp.
   2. Turn the 2 visor connectors clockwise approximately 90° to install them to the roof headlining.
   3. Attach the No. 1 roof wire with the butyl tape.
      NOTE:

      • Securely attach the No. 1 roof wire.
      • If any of the No. 1 roof wire is left loose, it will cause an abnormal noise.
      • Make sure to attach the No. 1 roof wire without leaving any of it loose.

      HINT:

      Secure the extra length of the No. 1 roof wire in the adjustment area.

3. Install the No. 1 roof wire to the roof headlining with adhesive tape.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	for Moon Roof	*B	for Panoramic Moon Roof
   *1	No. 1 Roof Wire	-	-
   *a	Correct	*b	Incorrect
   *c	10 mm (0.394 in.) or more	-	-
   	Adhesive Tape	-	-

   ADHESIVE TAPE SIZE



   Area	Dimension	Area	Dimension
   A	20 mm (0.787 in.)	B	80 mm (3.15 in.) or more

   NOTE:

   • Apply the tape securely in place.
   • Do not touch the adhesive surface when applying the tape to prevent adhesion failure.

Refer to PROCEDURE - Step 2

1. Align the No. 4 roof silencer with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Room Light Assembly	*B	w/ Spot Light Assembly
   *a	Hot-melt Glue	*b	Marking

1. Align the No. 2 roof silencer with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Hot-melt Glue

   *b

   Marking
