Reassembly [03/2017 - 06/2017]: Procedure

  1. INSTALL NO. 1 ROOF WIRE
    1. Apply butyl tape as shown in the illustration.

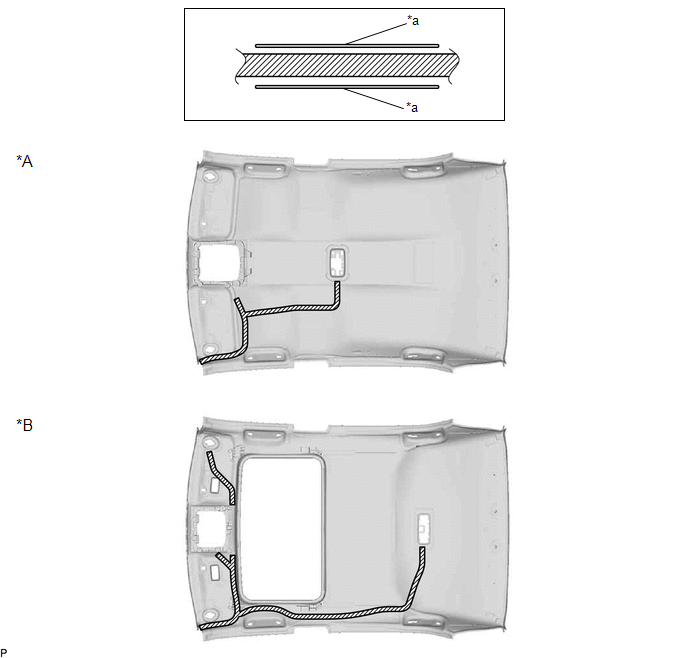

      GTY743397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Normal Roof *B for Moon Roof
      *a Marking - -
      Butyl Tape - -
      NOTE:

      Securely attach the butyl tape.

    2. Align the marking tape on the No. 1 roof wire with the tab on the front side of the roof headlining.

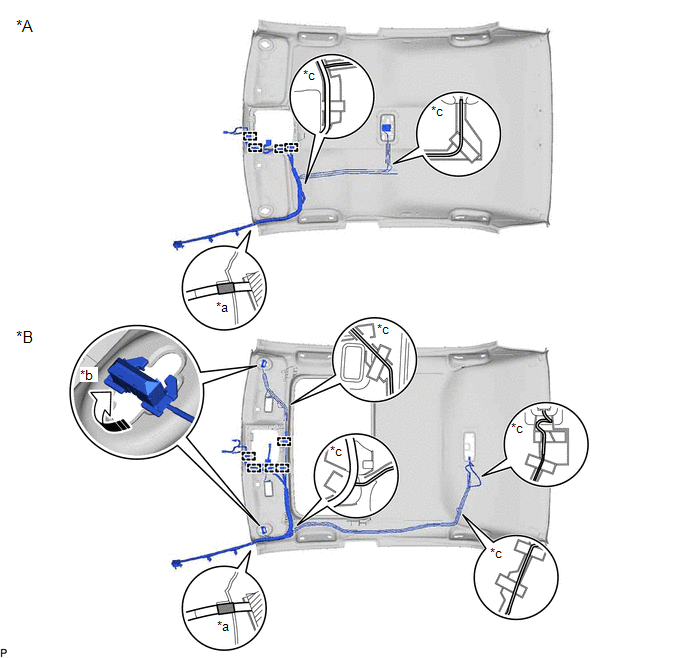

      GTY741876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Normal Roof *B for Moon Roof
      *a Marking Tape *b 90°
      *c Adjustment Area - -
      Rotation Direction - -
    3. Engage each clamp.
    4. for Moon Roof:
      1. Turn the 2 visor connectors clockwise approximately 90° to install them to the roof headlining.
    5. Attach the No. 1 roof wire with the butyl tape.
      NOTE:
      • Securely attach the No. 1 roof wire.
      • If any of the No. 1 roof wire is left loose, it will cause an abnormal noise.
      • Make sure to attach the No. 1 roof wire without leaving any of it loose.

      HINT:

      Secure the extra length of the No. 1 roof wire in the adjustment area.

    6. Install the No. 1 roof wire to the roof headlining with adhesive tape.

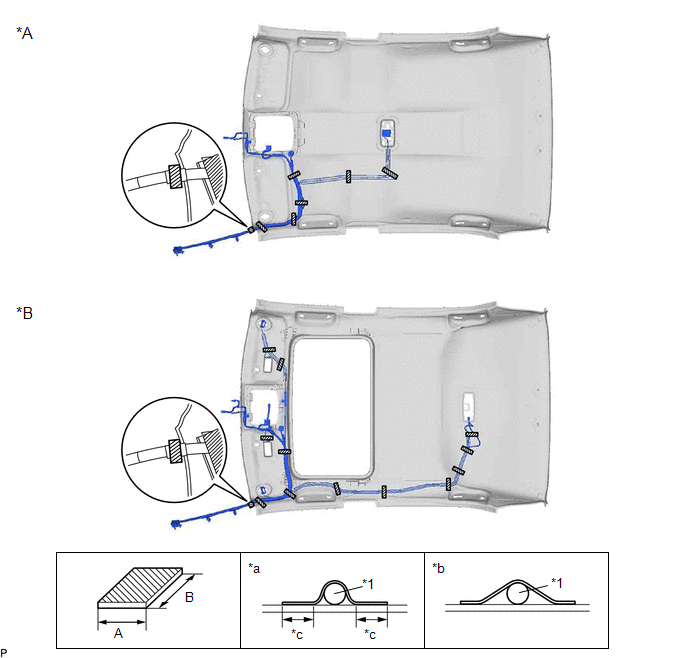

      GTY769817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Normal Roof *B for Moon Roof
      *1 No. 1 Roof Wire - -
      *a Correct *b Incorrect
      *c 10 mm (0.394 in.) or more - -
      Adhesive Tape - -
      ADHESIVE TAPE SIZE

      Area Dimension Area Dimension
      A 20 mm (0.787 in.) B 80 mm (3.15 in.) or more
      NOTE:
      • Apply the tape securely in place.
      • Do not touch the adhesive surface when applying the tape to prevent adhesion failure.
  2. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. INSTALL NO. 13 ROOF SILENCER PAD (for Normal Roof)
    1. Align the No. 13 roof silencer pad with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

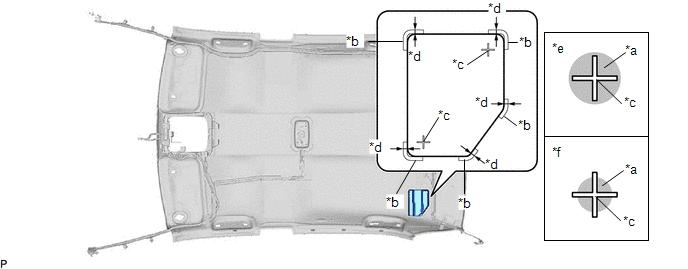

      GTY743880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
      *c "+" Marking *d 5.0 mm (0.197 in.)
      *e Correct *f Incorrect
      NOTE:

      Make sure to apply hot-melt glue to an area larger than the "+" marking.

  4. INSTALL NO. 12 ROOF SILENCER PAD (for Normal Roof)
    1. Align the No. 12 roof silencer pad with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

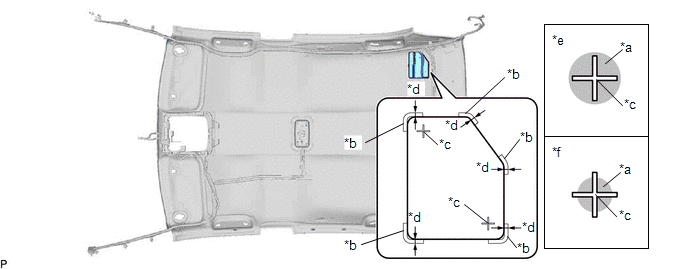

      GTY745010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
      *c "+" Marking *d 5.0 mm (0.197 in.)
      *e Correct *f Incorrect
      NOTE:

      Make sure to apply hot-melt glue to an area larger than the "+" marking.

  5. INSTALL ROOF HEADLINING PAD LH (for Normal Roof)
    1. Align the roof headlining pad LH with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

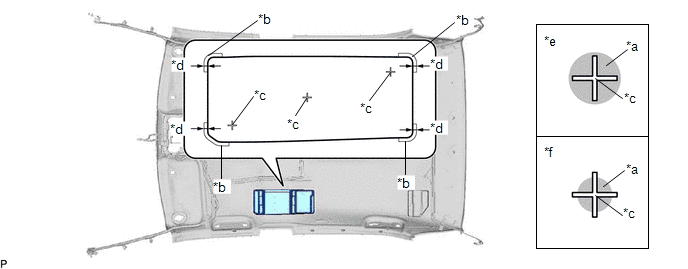

      GTY769932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
      *c "+" Marking *d 5.0 mm (0.197 in.)
      *e Correct *f Incorrect
      NOTE:

      Make sure to apply hot-melt glue to an area larger than the "+" marking.

  6. INSTALL ROOF HEADLINING PAD RH (for Normal Roof)
    1. Align the roof headlining pad RH with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

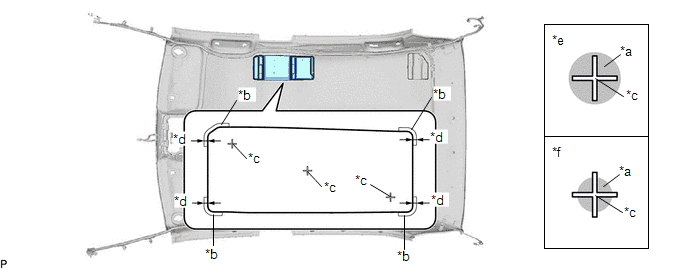

      GTY748558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
      *c "+" Marking *d 5.0 mm (0.197 in.)
      *e Correct *f Incorrect
      NOTE:

      Make sure to apply hot-melt glue to an area larger than the "+" marking.

  7. INSTALL ROOF SIDE RAIL SILENCER PAD LH (for Normal Roof)
    1. Align the roof side rail silencer pad LH with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

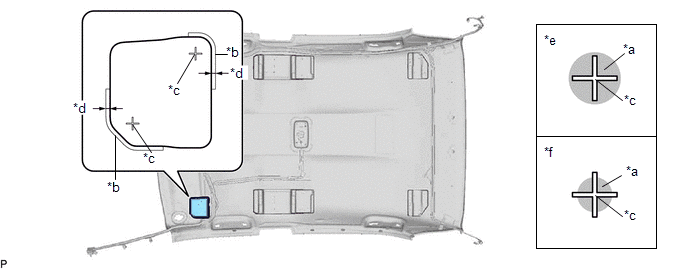

      GTY750579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
      *c "+" Marking *d 5 mm (0.197 in.)
      *e Correct *f Incorrect
      NOTE:

      Make sure to apply hot-melt glue to an area larger than the "+" marking.

  8. INSTALL ROOF SIDE RAIL SILENCER PAD RH (for Normal Roof)
    1. Align the roof side rail silencer pad RH with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

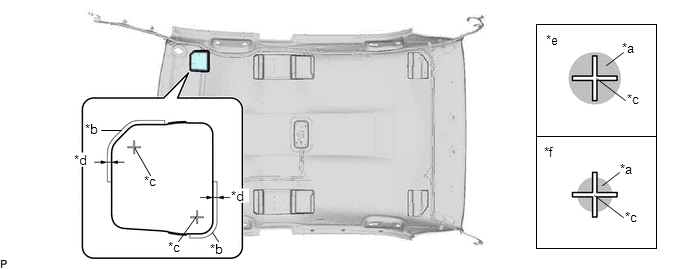

      GTY752134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
      *c "+" Marking *d 5 mm (0.197 in.)
      *e Correct *f Incorrect
      NOTE:

      Make sure to apply hot-melt glue to an area larger than the "+" marking.

  9. INSTALL NO. 4 ROOF SILENCER (for Normal Roof)
    1. Align the No. 4 roof silencer with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

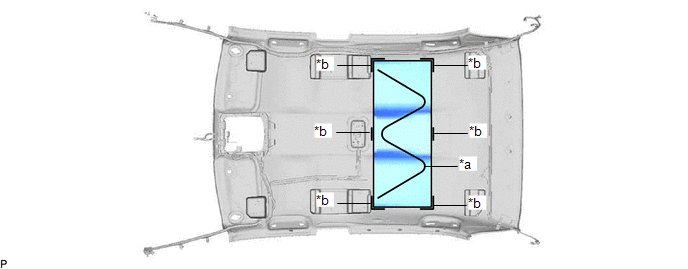

      GTY758105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
  10. INSTALL NO. 2 ROOF SILENCER (for Normal Roof)
    1. Align the No. 2 roof silencer with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

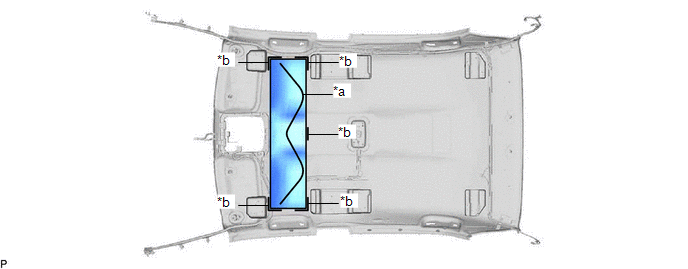

      GTY764266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
  11. INSTALL NO. 13 ROOF SILENCER PAD (for Moon Roof)
    1. Align the No. 13 roof silencer pad with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

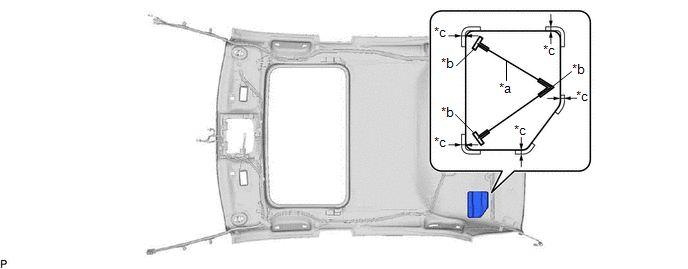

      GTY774313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
      *c 5.0 mm (0.197 in.) - -
  12. INSTALL NO. 12 ROOF SILENCER PAD (for Moon Roof)
    1. Align the No. 12 roof silencer pad with the markings on the roof headlining and install it using hot-melt glue as shown in the illustration.

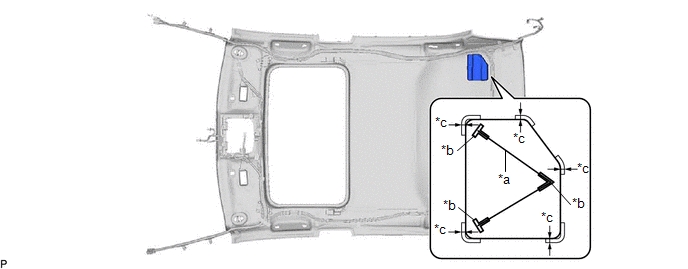

      GTY765193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hot-melt Glue *b Marking
      *c 5.0 mm (0.197 in.) - -
  13. INSTALL VANITY LIGHT ASSEMBLY (for Moon Roof)

    HINT:

    Use the same procedure for the RH side and LH side.

    1. Engage the claw (B) to install the vanity light assembly.

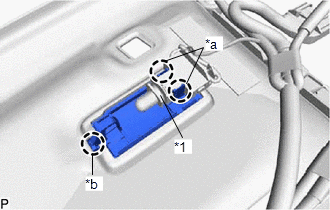

      GTY744808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Bulb Holder
      *a Claw (A)
      *b Claw (B)
    2. Engage the 2 claws (A) to install the bulb holder to the vanity light assembly.
