Reassembly [09/2019 - 10/2020]: Procedure

  1. INSTALL NO. 2 CONSOLE BOX DUCT (w/ Register)

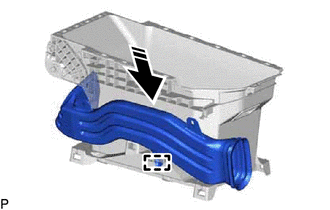

    1. Engage the guide as shown in the illustration.
      GTY753799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

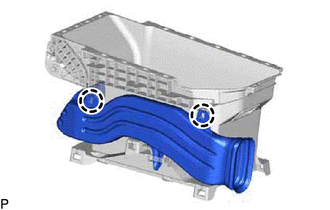

    2. Engage the 2 claws to install the No. 2 console box duct.
      GTY750328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 3 CONSOLE BOX DUCT (w/ Register)

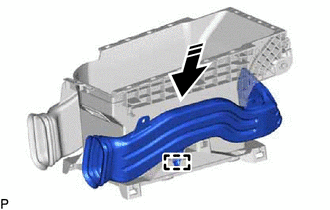

    1. Engage the guide as shown in the illustration.
      GTY748410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

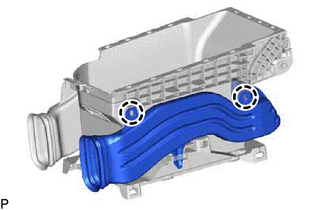

    2. Engage the 2 claws to install the No. 3 console box duct.
      GTY751343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 BOX SIDE PANEL

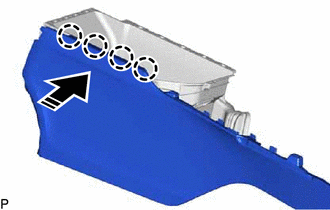

    1. Engage the 4 claws as shown in the illustration.
      GTY746557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

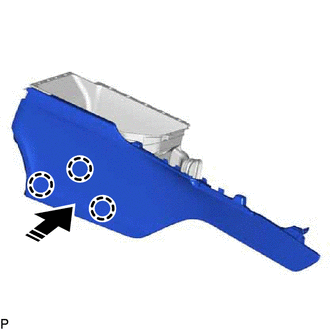

    2. Engage the 3 claws to install the No. 1 box side panel as shown in the illustration.
      GTY765089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL NO. 2 BOX SIDE PANEL

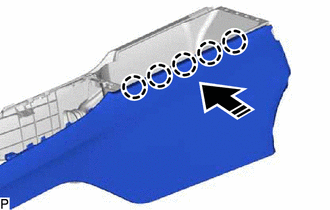

    1. Engage the 5 claws as shown in the illustration.
      GTY761362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

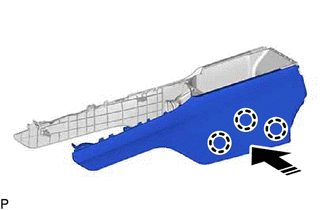

    2. Engage the 3 claws to install the No. 2 box side panel as shown in the illustration.
      GTY771065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  5. INSTALL CONSOLE BOX RETAINER

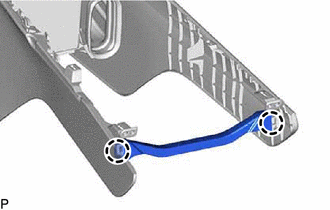

    1. Engage the 2 claws to install the console box retainer.
      GTY751781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL USB CHARGER SOCKET (w/ Power Outlet Socket)

    Refer to PROCEDURE - Step 1

  7. INSTALL CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY

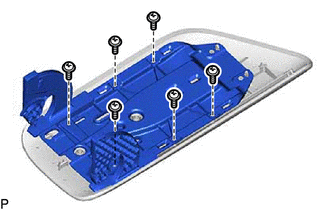

    1. Install the console compartment door hinge sub-assembly with the 6 screws.
      GTY751782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

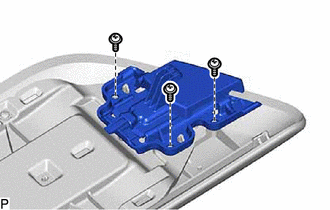

    1. Install the console compartment door lock sub-assembly with the 3 screws.
      GTY770994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL CONSOLE COMPARTMENT DOOR CUSHION

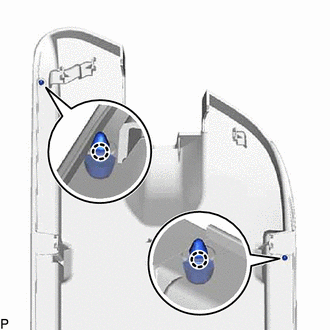

    1. Engage the 2 claws to install the 2 console compartment door cushions.
      GTY751777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL CONSOLE COMPARTMENT DOOR PANEL

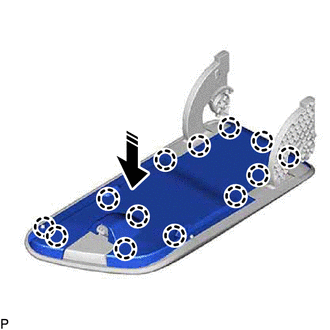

    1. Engage the 13 claws to install the console compartment door panel as shown in the illustration.
      GTY744854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  11. INSTALL REAR CONSOLE ARMREST ASSEMBLY

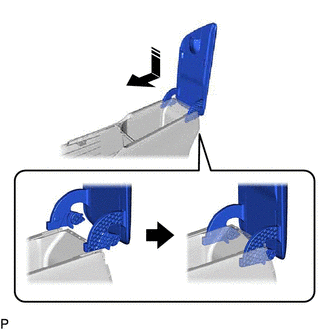

    1. Insert the rear console armrest assembly as shown in the illustration.
      GTY741010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

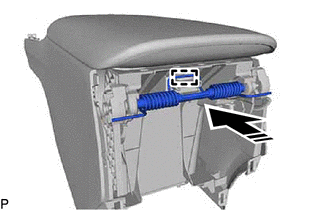

    2. Engage the guide to install the console box mount bracket spring and console box spacer as shown in the illustration.
      GTY746715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

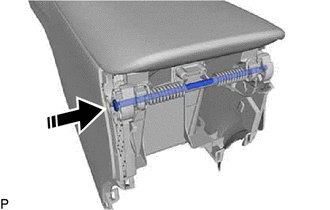

    3. Install the console compartment door stopper pin as shown in the illustration.
      GTY743938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

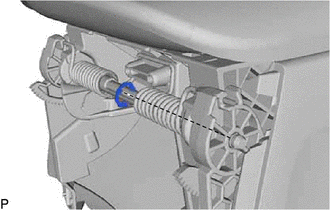

    4. Install the E-ring.
      GTY753381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

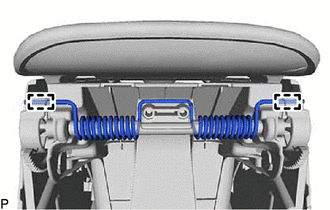

    5. Engage the 2 guides to install the rear console armrest assembly.
      GTY746799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/ Register)

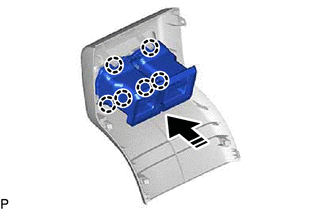

    1. Engage the 6 claws to install the console box register assembly as shown in the illustration.
      GTY740873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

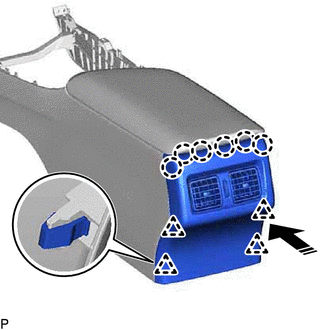

    1. Engage the 6 claws and 4 clips to install the console rear end panel sub-assembly as shown in the illustration.
      GTY759038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
