Disassembly [03/2017 - 06/2017]: Procedure

  1. REMOVE REAR CONSOLE ARMREST ASSEMBLY
    1. Disengage the 2 guides.
      GTY746799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the E-ring.
      GTY753381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

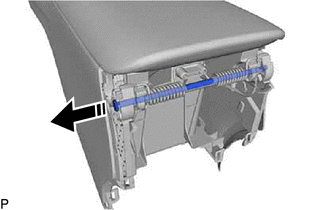

    3. Remove the console compartment door stopper pin as shown in the illustration.
      GTY746241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

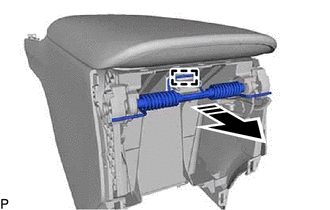

    4. Disengage the guide to remove the console box mount bracket spring and console box spacer as shown in the illustration.
      GTY748626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

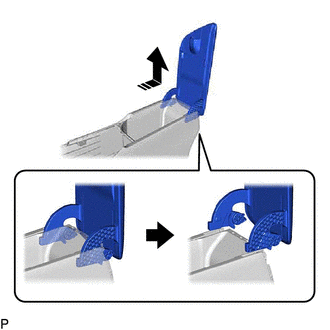

    5. Remove the rear console armrest assembly as shown in the illustration.
      GTY769196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE CONSOLE COMPARTMENT DOOR CUSHION

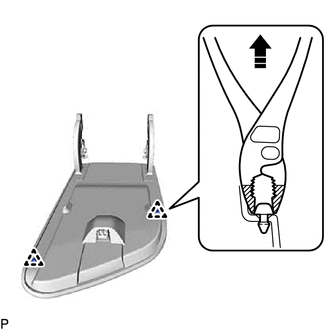

    1. Using pliers, disengage the 2 clips to remove the 2 console compartment door cushions as shown in the illustration.
      GTY757044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
      Remove in this Direction

      HINT:

      Tape the tips of the pliers before use.
