Components [03/2017 - 06/2017]

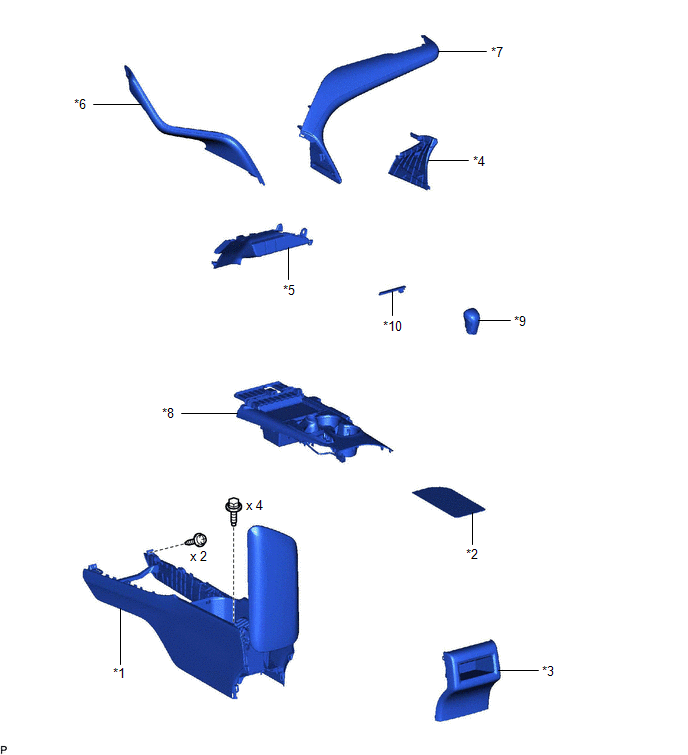

| *1 | CONSOLE BOX ASSEMBLY | *2 | CONSOLE BOX CARPET |
| *3 | CONSOLE REAR END PANEL SUB-ASSEMBLY | *4 | INSTRUMENT PANEL FINISH PLATE GARNISH |
| *5 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | *6 | NO. 1 METER HOOD CLUSTER |
| *7 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *8 | REAR UPPER CONSOLE PANEL SUB-ASSEMBLY |
| *9 | SHIFT LEVER KNOB SUB-ASSEMBLY | *10 | SHIFT LOCK RELEASE BUTTON COVER |
| *1 | FRONT CONSOLE BOX INSERT SUB-ASSEMBLY | *2 | INSTRUMENT PANEL CUP HOLDER |
| *3 | SHIFT POSITION INDICATOR | - | - |

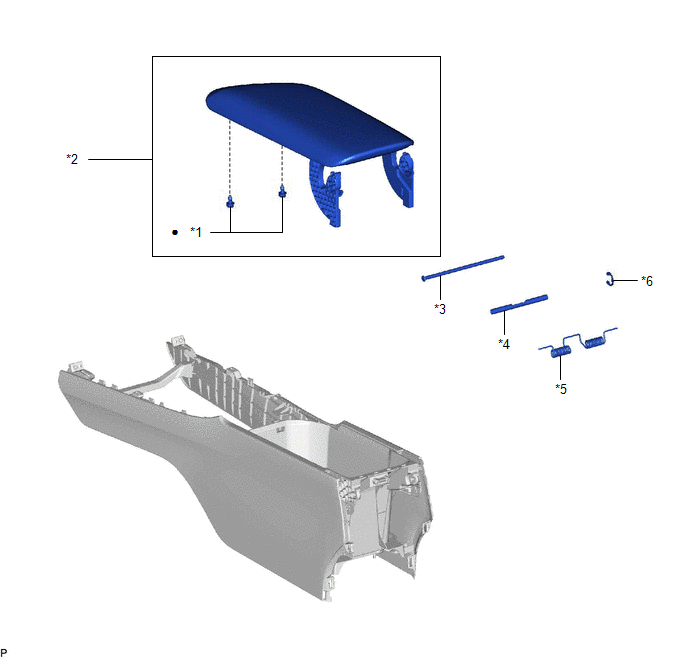

| *1 | CONSOLE COMPARTMENT DOOR CUSHION | *2 | REAR CONSOLE ARMREST ASSEMBLY |
| *3 | CONSOLE COMPARTMENT DOOR STOPPER PIN | *4 | CONSOLE BOX SPACER |
| *5 | CONSOLE BOX MOUNT BRACKET SPRING | *6 | E-RING |
| • | Non-reusable part | - | - |
