Exterior Panels / Trim - Service Information (2 Of 2) (Except Hybrid)
>>
Rocker Panel Moulding
>>
Components [03/2017 - ]
Components [03/2017 - ]

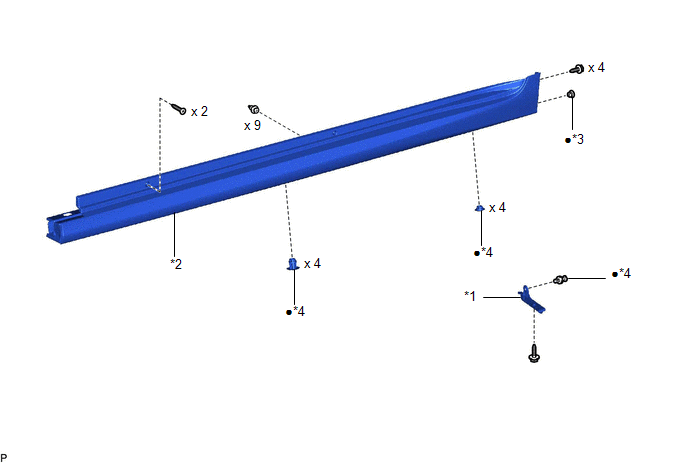

Fig 1: Rocker Panel Moulding Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT ROCKER PANEL MOULDING END COVER
*2
ROCKER PANEL MOULDING
*3
GROMMET
*4
CLIP
•
Non-reusable part
-
-
