Components [03/2017 - ]

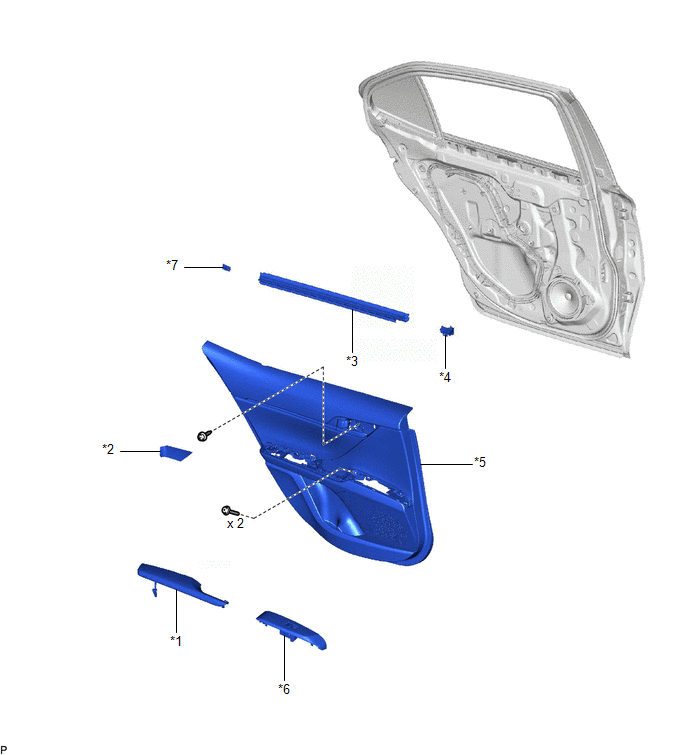

| *1 | REAR ARMREST ASSEMBLY | *2 | REAR DOOR ARMREST COVER SUB-ASSEMBLY |
| *3 | REAR DOOR INNER GLASS WEATHERSTRIP | *4 | REAR DOOR NO. 2 SERVICE HOLE COVER |
| *5 | REAR DOOR TRIM BOARD SUB-ASSEMBLY | *6 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL |
| *7 | NO. 1 DOOR SCUFF PLATE CLAMP | - | - |

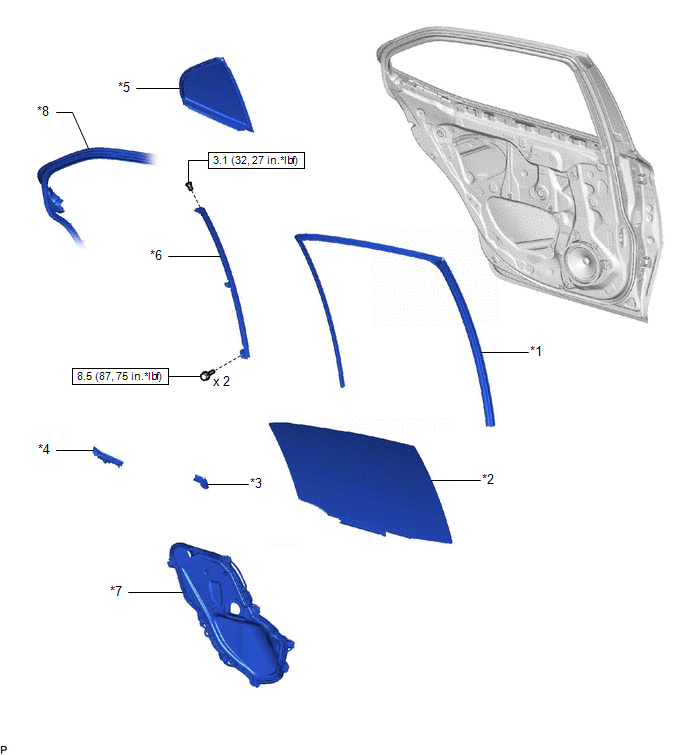

| Callout | Description | Callout | Description |
| *1 | REAR DOOR GLASS RUN | *2 | REAR DOOR GLASS SUB-ASSEMBLY |
| *3 | REAR DOOR NO. 1 VENT SEAL | *4 | REAR DOOR PANEL PROTECTOR |
| *5 | REAR DOOR QUARTER WINDOW GLASS | *6 | REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY |
| *7 | REAR DOOR SERVICE HOLE COVER | *8 | REAR DOOR WEATHERSTRIP |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

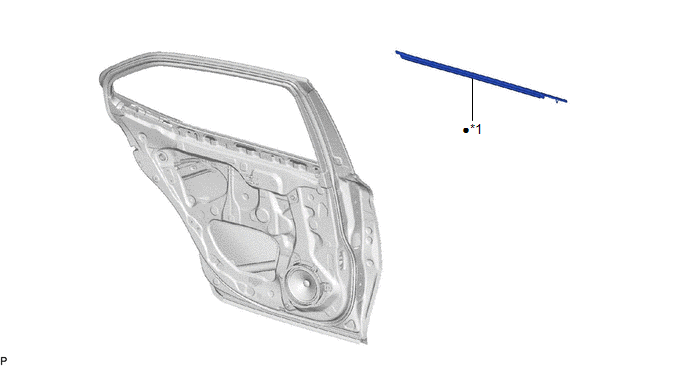

| *1 | REAR DOOR BELT MOULDING ASSEMBLY | - | - |
| • | Non-reusable part | - | - |
