Removal [09/2019 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SPOILER
    1. Apply protective tape around the rear spoiler as shown in the illustration.
      GTY762323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. except TRD:
      1. Remove the 2 bolts.
        GTY759584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Separate the double-sided tape and remove the rear spoiler.
        GTY765641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Double-sided Tape
    3. for TRD:
      1. Remove the 4 nuts.

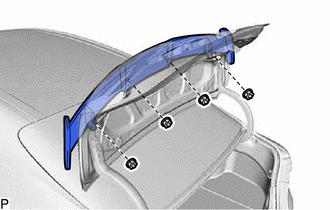

        GTY847190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Separate the double-sided tape and remove the rear spoiler.

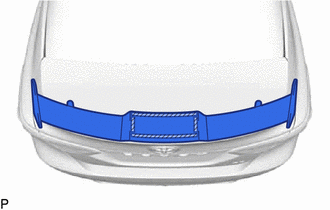

        GTY847149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Double-sided Tape
  3. REMOVE REAR SPOILER RETAINER (except TRD)
    1. Remove the 6 clips.
      GTY758188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Separate the double-sided tape and disengage the 3 guides to remove the rear spoiler retainer.
      GTY745179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
