Home >> Toyota >> 2021 >> Camry LE, FWD >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Exterior Panels / Trim - Service Information (1 Of 2) (Except Hybrid) >> Rear Spoiler >> Components [09/2019 - ]

Components [09/2019 - ]

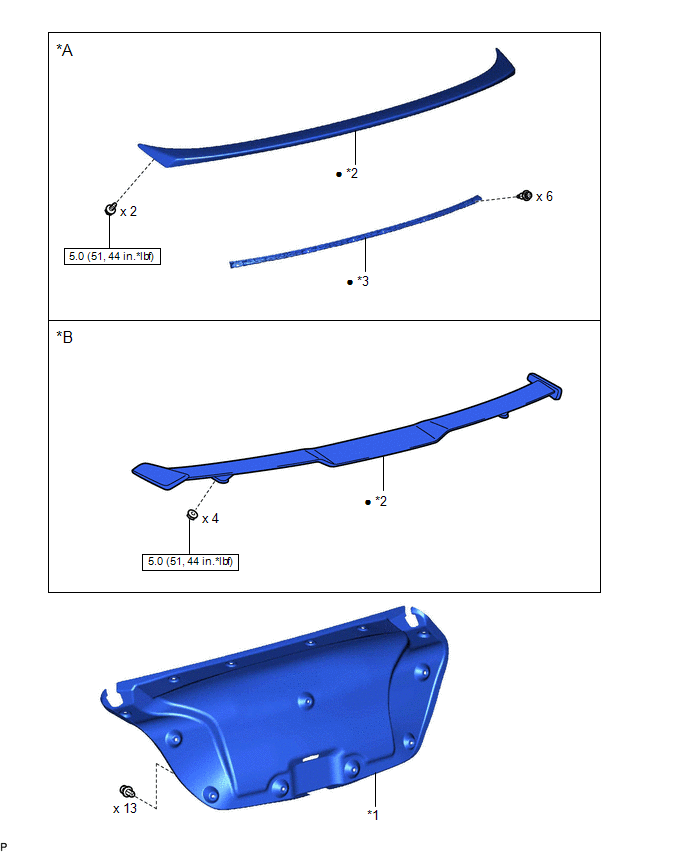

Fig 1: Rear Spoiler Replacement Components With Torque Specifications [09/2019 - ]
GTY923504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A except TRD *B for TRD
*1 LUGGAGE COMPARTMENT DOOR COVER *2 REAR SPOILER
*3 REAR SPOILER RETAINER - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
