Reassembly [09/2019 - 10/2020]: Procedure

  1. INSTALL REAR BUMPER REINFORCEMENT
    1. Install the rear bumper reinforcement with the 6 bolts.
      GTY772739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

  2. INSTALL REAR BUMPER ENERGY ABSORBER (for Type A)
    1. Engage the 2 guides to install the rear bumper energy absorber as shown in the illustration.
      GTY758883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL REAR BUMPER ENERGY ABSORBER (for Type B)
    1. Engage the 2 guides to install the rear bumper energy absorber as shown in the illustration.
      GTY764603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL REAR BUMPER SIDE SEAL LH
    1. for Single Type:
      GTY759574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the 3 clips.
    2. for Dual Type:
      GTY772809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the 2 clips.
    3. Install the rear bumper side seal LH with 2 new grommets.
      GTY764066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR BUMPER SIDE SEAL RH
    1. Install the 2 clips.
      GTY772722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear bumper side seal RH with 2 new grommets.
      GTY773718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR BUMPER UPPER RETAINER LH
    1. Engage the grommet.
    2. Engage the 2 guides to temporarily install the rear bumper upper retainer LH to the rear combination light assembly LH.
      GTY759651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the guide and pin as shown in the illustration to temporarily install the rear bumper upper retainer LH and rear combination light assembly LH as a set.
      GTY761642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
      Install in this Direction
    4. Install the rear combination light assembly with the 2 screws.
    5. Connect the connector.
    6. Install the rear bumper upper retainer LH with the screw.
  7. INSTALL REAR BUMPER UPPER RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  8. INSTALL REAR BUMPER SIDE RETAINER LH
    1. Engage the guide as shown in the illustration.
      GTY768039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Engage the 2 claws.
    3. Engage the 3 clips as shown in the illustration.
      GTY765794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the rear bumper side retainer LH with the screw.
      GTY772736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  10. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER LH

    Refer to PROCEDURE - Step 4

  11. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER RH

    Refer to PROCEDURE - Step 5

  12. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 6

  13. INSTALL LUGGAGE COMPARTMENT DOOR STRIKER COVER

    Refer to PROCEDURE - Step 7

  14. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 8

  15. INSTALL SPARE WHEEL COVER TRAY

    Refer to PROCEDURE - Step 9

  16. INSTALL SPARE WHEEL COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  17. INSTALL REAR BUMPER PAD

    HINT:

    • When installing the rear bumper pad, heat the rear bumper cover using a heat light.
    • Use the same procedure for the RH side and LH side.
    HEATING TEMPERATURE

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear bumper cover excessively.

    1. Clean the rear bumper cover surface.
      1. Using a heat light, heat the rear bumper cover surface.
      2. Remove any remaining double-sided tape from the rear bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Remove the release paper from a new rear bumper pad.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

    3. Install the rear bumper pad as shown in the illustration.
      GTY744317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Press the rear bumper pad firmly to install it.

  18. INSTALL LOWER REAR BUMPER COVER (for Type A)
    1. Engage the 12 claws.
      GTY753177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 clips.
      GTY753164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the lower rear bumper cover with the 2 screws.
  19. INSTALL REAR BUMPER CORNER EXTENSION LH (for Type B)
    1. Engage the 4 guides and 4 claws to install the rear bumper corner extension LH.
      GTY762056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL REAR BUMPER CORNER EXTENSION RH (for Type B)

    HINT:

    Use the same procedure as for the LH side.

  21. INSTALL REAR BUMPER EXTENSION MOULDING LH (for Type B)
    1. except TRD:
      1. Engage the 4 claws to install the rear bumper extension moulding LH.
        GTY759637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REAR BUMPER EXTENSION MOULDING RH (for Type B)

    except TRD:

    HINT:

    Use the same procedure as for the LH side.

  23. INSTALL REAR SPOILER (for Type B)

    HINT:

    When installing the rear spoiler, heat the rear bumper cover using a heat light.

    HEATING TEMPERATURE

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts, touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear bumper cover excessively.

    1. for TRD:
      1. Clean the rear bumper cover surface.
        1. Using a heat light, heat the rear bumper cover surface.
        2. Remove the double-sided tape from the rear bumper cover.
        3. Wipe off any tape adhesive residue with cleaner.

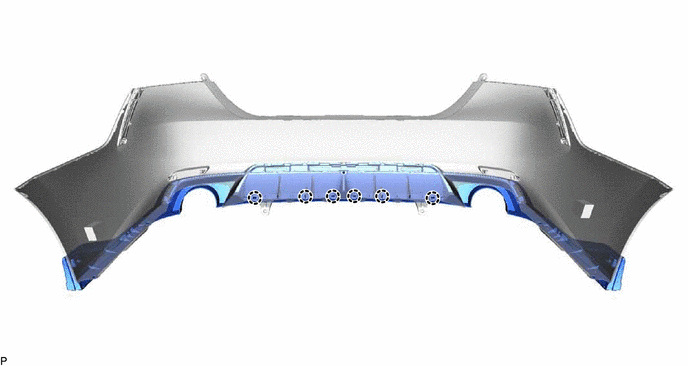

      2. Engage the 6 claws.
        GTY847176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the release paper from a new rear spoiler.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

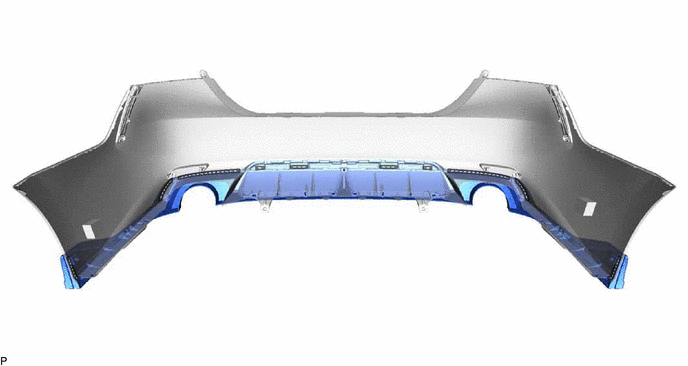

      4. Attach the double-sided tape as shown in the illustration.
        GTY936967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Double-sided Tape - -

        HINT:

        Press the rear spoiler firmly to install it.

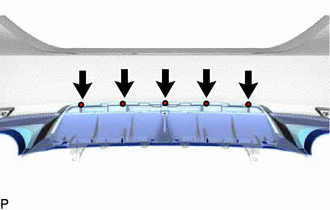

      5. Install the 5 screws.
        GTY847187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

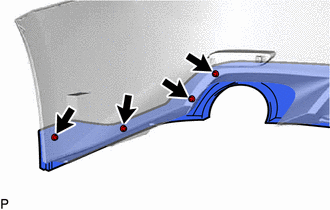

      6. Install the rear spoiler with the 4 screws.
        GTY847185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use the same procedure for the RH side and LH side.

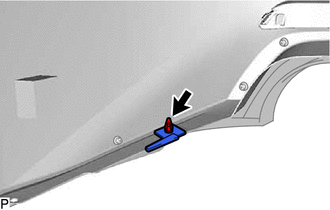

      7. Install the clip and rear bumper piece.
        GTY847184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use the same procedure for the RH side and LH side.

  24. INSTALL REFLEX REFLECTOR ASSEMBLY LH
    1. Engage the guide and claw.
      GTY759638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the reflex reflector assembly LH with the screw.
      GTY772737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  26. INSTALL NO. 2 LUGGAGE ROOM WIRE (w/ Intuitive Parking Assist System)
  27. INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 1

    HINT:

    Use the same procedure for the RH side and LH side.

  28. INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

    HINT:

    Use the same procedure for the RH side and LH side.

  29. INSTALL REAR CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4

    HINT:

    Use the same procedure for the RH side and LH side.

  30. INSTALL REAR CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 5

    HINT:

    Use the same procedure for the RH side and LH side.
