Components [09/2019 - 10/2020]
| *A | for Single Type | *B | for Dual Type |
| *1 | REAR BUMPER ASSEMBLY | *2 | REAR COMBINATION LIGHT COVER LH |
| *3 | REAR COMBINATION LIGHT COVER RH | - | - |
| *A | w/ Intuitive Parking Assist System | - | - |
| *1 | NO. 2 LUGGAGE ROOM WIRE | *2 | REAR CENTER ULTRASONIC SENSOR |
| *3 | REAR CENTER ULTRASONIC SENSOR RETAINER | *4 | REAR CORNER ULTRASONIC SENSOR |
| *5 | REAR CORNER ULTRASONIC SENSOR RETAINER | - | - |
| • | Non-reusable part | - | - |
| *A | for Type A | - | - |
| *1 | LOWER REAR BUMPER COVER | *2 | REAR BUMPER PAD |
| *3 | REFLEX REFLECTOR ASSEMBLY LH | *4 | REFLEX REFLECTOR ASSEMBLY RH |
| • | Non-reusable part | - | - |

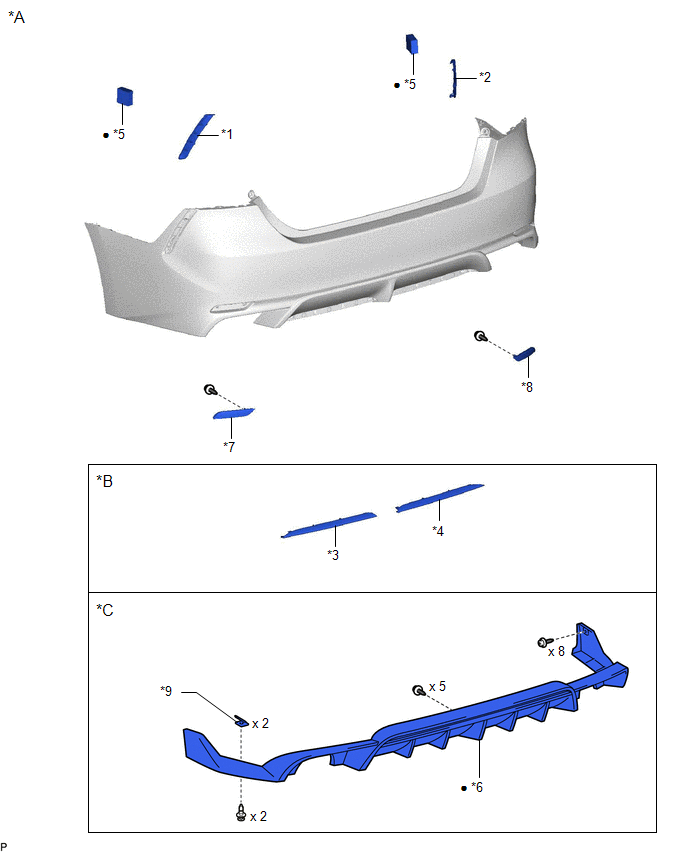

| *A | for Type B | *B | except TRD |
| *C | for TRD | - | - |
| *1 | REAR BUMPER CORNER EXTENSION LH | *2 | REAR BUMPER CORNER EXTENSION RH |
| *3 | REAR BUMPER EXTENSION MOULDING LH | *4 | REAR BUMPER EXTENSION MOULDING RH |
| *5 | REAR BUMPER PAD | *6 | REAR SPOILER |
| *7 | REFLEX REFLECTOR ASSEMBLY LH | *8 | REFLEX REFLECTOR ASSEMBLY RH |
| *9 | REAR BUMPER PIECE | - | - |
| • | Non-reusable part | - | - |
| *1 | LUGGAGE COMPARTMENT DOOR STRIKER COVER | *2 | LUGGAGE COMPARTMENT TRIM INNER COVER LH |
| *3 | LUGGAGE COMPARTMENT TRIM INNER COVER RH | *4 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| *5 | REAR FLOOR FINISH PLATE | *6 | SPARE WHEEL COVER ASSEMBLY |
| *7 | SPARE WHEEL COVER TRAY | - | - |
| Callout | Description | Callout | Description |
| *A | for Type A | *B | for Type B |
| *C | for Single Type | *D | for Dual Type |
| *1 | REAR BUMPER ENERGY ABSORBER | *2 | REAR BUMPER REINFORCEMENT |
| *3 | REAR BUMPER SIDE RETAINER LH | *4 | REAR BUMPER SIDE RETAINER RH |
| *5 | REAR BUMPER SIDE SEAL LH | *6 | REAR BUMPER SIDE SEAL RH |
| *7 | REAR BUMPER UPPER RETAINER LH | *8 | REAR BUMPER UPPER RETAINER RH |
| *9 | REAR COMBINATION LIGHT ASSEMBLY LH | *10 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *11 | GROMMET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
