Components [09/2019 - 10/2020]

Fig 1: Front Bumper Replacement Components With Torque Specifications [09/2019 - 10/2020] (1 Of 7)
GTY760841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COOL AIR INTAKE DUCT SEAL *2 FRONT BUMPER ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
Fig 2: Front Bumper Replacement Components [09/2019 - 10/2020] (2 Of 7)
GTY759258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Intuitive Parking Assist System *B for Bar Type Radiator Grille
*1 FRONT CENTER ULTRASONIC SENSOR *2 FRONT CENTER ULTRASONIC SENSOR RETAINER
*3 FRONT CORNER ULTRASONIC SENSOR *4 FRONT CORNER ULTRASONIC SENSOR RETAINER
*5 NO. 4 ENGINE ROOM WIRE - -
• Non-reusable part - -
Fig 3: Front Bumper Replacement Components [09/2019 - 10/2020] (3 Of 7)
GTY741715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Intuitive Parking Assist System *B for Mesh Type Radiator Grille
*1 FRONT CENTER ULTRASONIC SENSOR *2 FRONT CORNER ULTRASONIC SENSOR
*3 FRONT CORNER ULTRASONIC SENSOR RETAINER *4 NO. 4 ENGINE ROOM WIRE
• Non-reusable part - -

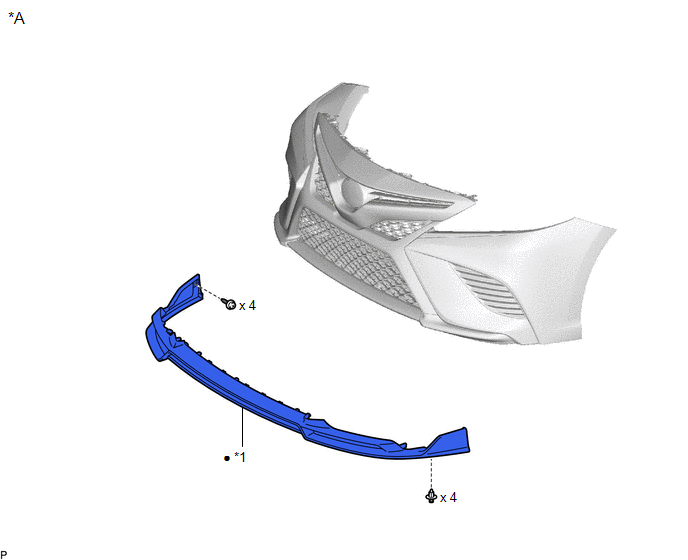

Fig 4: Front Bumper Replacement Components [09/2019 - 10/2020] (4 Of 7)
GTY915708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for TRD - -
*1 FRONT SPOILER - -
• Non-reusable part - -

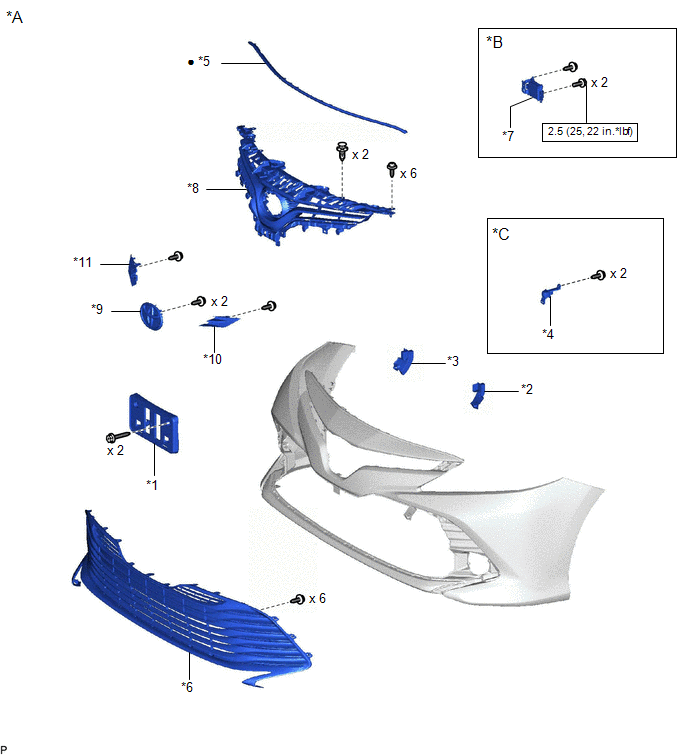

Fig 5: Front Bumper Replacement Components With Torque Specifications [09/2019 - 10/2020] (5 Of 7)
GTY921802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Bar Type Radiator Grille *B w/ Pre-collision System
*C w/ Panoramic View Monitor System - -
*1 FRONT BUMPER EXTENSION MOUNTING BRACKET *2 FRONT BUMPER PAD LH
*3 FRONT BUMPER PAD RH *4 FRONT TELEVISION CAMERA ASSEMBLY
*5 HOOD TO FRONT END PANEL SEAL *6 LOWER RADIATOR GRILLE SUB-ASSEMBLY
*7 MILLIMETER WAVE RADAR SENSOR ASSEMBLY *8 RADIATOR GRILLE
*9 RADIATOR GRILLE EMBLEM ASSEMBLY *10 RADIATOR GRILLE SIDE MOULDING LH
*11 RADIATOR GRILLE SIDE MOULDING RH - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

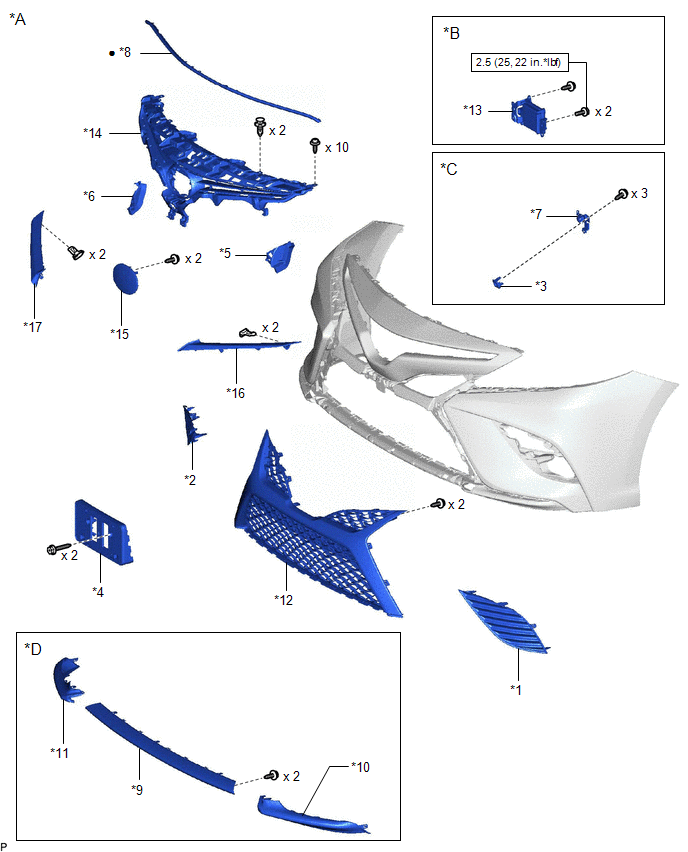

Fig 6: Front Bumper Replacement Components With Torque Specifications [09/2019 - 10/2020] (6 Of 7)
GTY906319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Mesh Type Radiator Grille *B w/ Pre-collision System
*C w/ Panoramic View Monitor System *D except TRD
*1 FOG LIGHT COVER LH *2 FOG LIGHT COVER RH
*3 FRONT BUMPER COVER INSERT *4 FRONT BUMPER EXTENSION MOUNTING BRACKET
*5 FRONT BUMPER PAD LH *6 FRONT BUMPER PAD RH
*7 FRONT TELEVISION CAMERA ASSEMBLY *8 HOOD TO FRONT END PANEL SEAL
*9 LOWER RADIATOR GRILLE MOULDING *10 LOWER RADIATOR GRILLE MOULDING LH
*11 LOWER RADIATOR GRILLE MOULDING RH *12 LOWER RADIATOR GRILLE SUB-ASSEMBLY
*13 MILLIMETER WAVE RADAR SENSOR ASSEMBLY *14 RADIATOR GRILLE
*15 RADIATOR GRILLE EMBLEM ASSEMBLY *16 RADIATOR GRILLE SIDE MOULDING LH
*17 RADIATOR GRILLE SIDE MOULDING RH - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Fig 7: Front Bumper Replacement Components With Torque Specifications [09/2019 - 10/2020] (7 Of 7)
GTY773579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT BUMPER ENERGY ABSORBER *2 FRONT BUMPER REINFORCEMENT
*3 FRONT BUMPER SIDE RETAINER LH *4 FRONT BUMPER SIDE RETAINER RH
*5 FRONT FENDER LINER RETAINER *6 NO. 2 FRONT BUMPER ENERGY ABSORBER
*7 PIN HOLD CLIP *8 HEADLIGHT ASSEMBLY LH
*9 HEADLIGHT ASSEMBLY RH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
