Components [06/2017 - 09/2019]
| Callout | Description | Callout | Description |
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | FRONT BUMPER ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

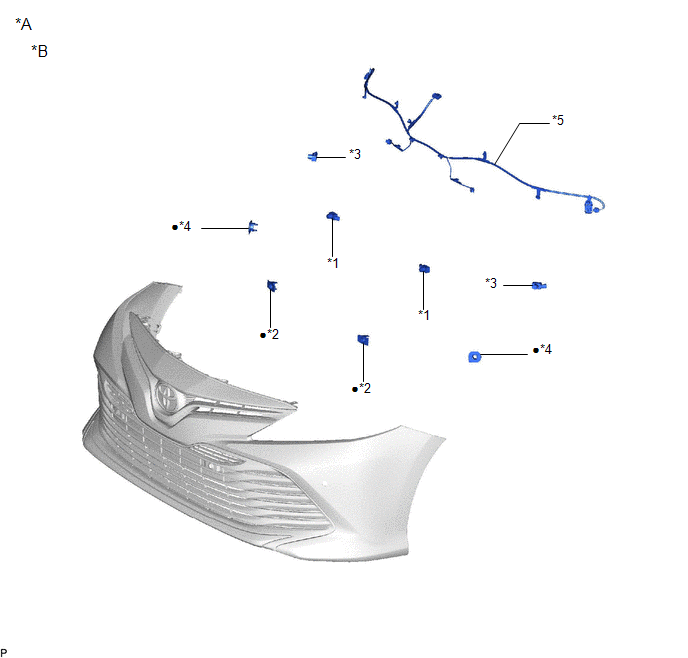

| *A | w/ Intuitive Parking Assist System | *B | for Bar Type Radiator Grille |
| *1 | FRONT CENTER ULTRASONIC SENSOR | *2 | FRONT CENTER ULTRASONIC SENSOR RETAINER |
| *3 | FRONT CORNER ULTRASONIC SENSOR | *4 | FRONT CORNER ULTRASONIC SENSOR RETAINER |
| *5 | NO. 4 ENGINE ROOM WIRE | - | - |
| • | Non-reusable part | - | - |

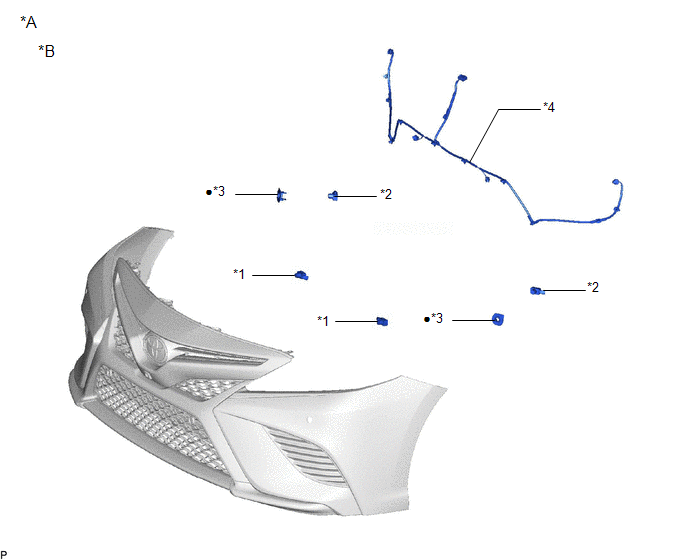

| *A | w/ Intuitive Parking Assist System | *B | for Mesh Type Radiator Grille |
| *1 | FRONT CENTER ULTRASONIC SENSOR | *2 | FRONT CORNER ULTRASONIC SENSOR |
| *3 | FRONT CORNER ULTRASONIC SENSOR RETAINER | *4 | NO. 4 ENGINE ROOM WIRE |
| • | Non-reusable part | - | - |

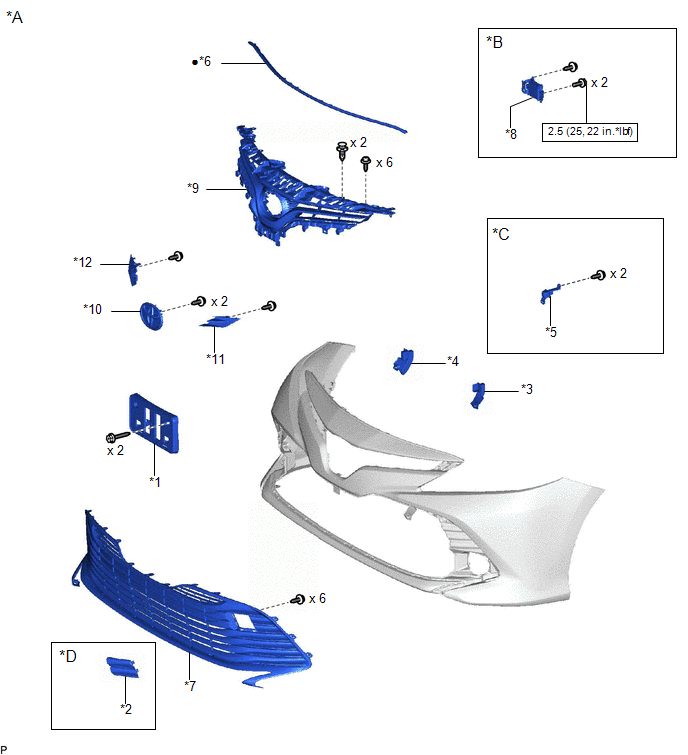

| Callout | Description | Callout | Description |
| *A | for Bar Type Radiator Grille | *B | w/ Pre-collision System |
| *C | w/ Panoramic View Monitor System | *D | w/ Cover |
| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | *2 | FRONT BUMPER HOLE COVER LH |
| *3 | FRONT BUMPER PAD LH | *4 | FRONT BUMPER PAD RH |
| *5 | FRONT TELEVISION CAMERA ASSEMBLY | *6 | HOOD TO FRONT END PANEL SEAL |
| *7 | LOWER RADIATOR GRILLE SUB-ASSEMBLY | *8 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *9 | RADIATOR GRILLE | *10 | RADIATOR GRILLE EMBLEM ASSEMBLY |
| *11 | RADIATOR GRILLE SIDE MOULDING LH | *12 | RADIATOR GRILLE SIDE MOULDING RH |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

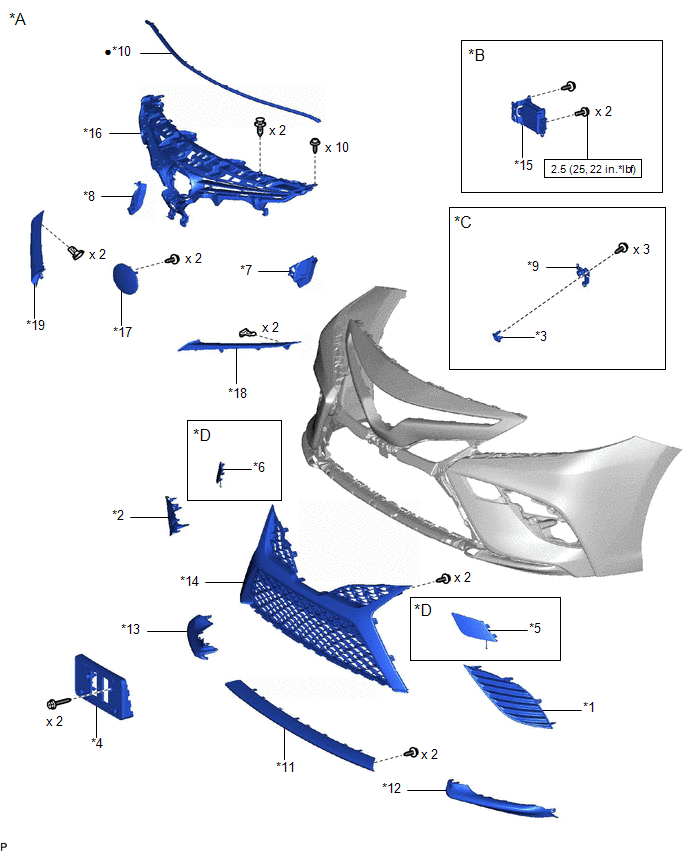

| Callout | Description | Callout | Description |
| *A | for Mesh Type Radiator Grille | *B | w/ Pre-collision System |
| *C | w/ Panoramic View Monitor System | *D | w/ Cover |
| *1 | FOG LIGHT COVER LH | *2 | FOG LIGHT COVER RH |
| *3 | FRONT BUMPER COVER INSERT | *4 | FRONT BUMPER EXTENSION MOUNTING BRACKET |
| *5 | FRONT BUMPER HOLE COVER LH | *6 | FRONT BUMPER HOLE COVER RH |
| *7 | FRONT BUMPER PAD LH | *8 | FRONT BUMPER PAD RH |
| *9 | FRONT TELEVISION CAMERA ASSEMBLY | *10 | HOOD TO FRONT END PANEL SEAL |
| *11 | LOWER RADIATOR GRILLE MOULDING | *12 | LOWER RADIATOR GRILLE MOULDING LH |
| *13 | LOWER RADIATOR GRILLE MOULDING RH | *14 | LOWER RADIATOR GRILLE SUB-ASSEMBLY |
| *15 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *16 | RADIATOR GRILLE |
| *17 | RADIATOR GRILLE EMBLEM ASSEMBLY | *18 | RADIATOR GRILLE SIDE MOULDING LH |
| *19 | RADIATOR GRILLE SIDE MOULDING RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
| Callout | Description | Callout | Description |
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT |
| *3 | FRONT BUMPER SIDE RETAINER LH | *4 | FRONT BUMPER SIDE RETAINER RH |
| *5 | FRONT FENDER LINER RETAINER | *6 | NO. 2 FRONT BUMPER ENERGY ABSORBER |
| *7 | PIN HOLD CLIP | *8 | HEADLIGHT ASSEMBLY LH |
| *9 | HEADLIGHT ASSEMBLY RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
