Parts Location [03/2017 - 08/2018]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

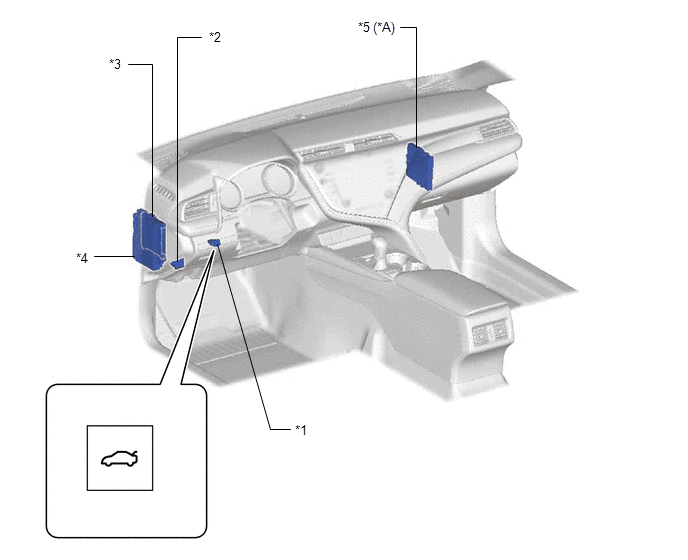

*A	w/ Smart Key System	-	-
*1	LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY	*2	DLC3
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR BACK RELAY - D/L FUSE
*5	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

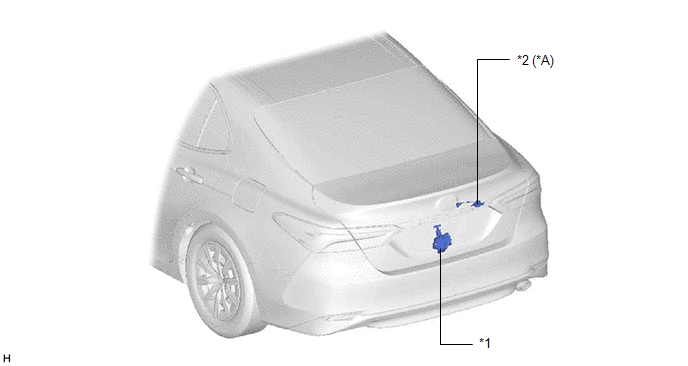

*A	w/ Smart Key System	-	-
*1	LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY	*2	LUGGAGE ELECTRICAL KEY SWITCH
