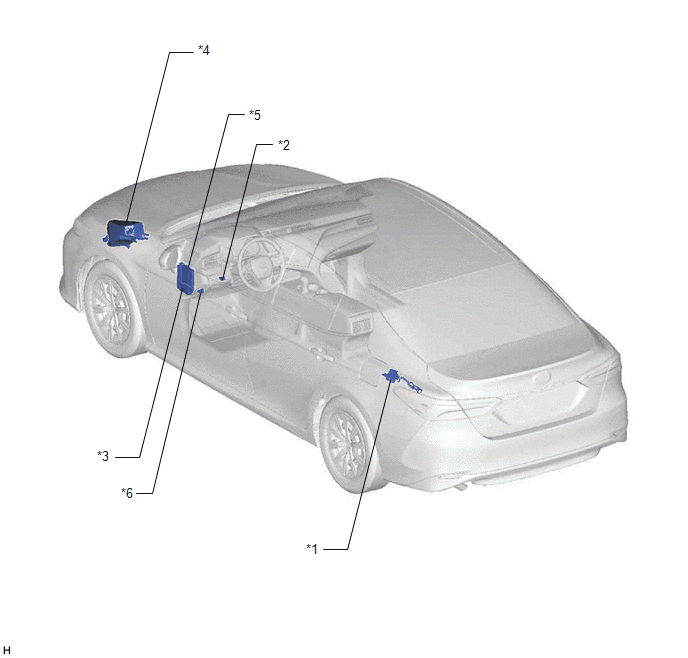

Parts Location [08/2018 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL LID LOCK WITH MOTOR ASSEMBLY	*2	FUEL LID OPENER SWITCH
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - FUEL OPN RELAY	*4	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - FUEL OPN FUSE
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	DLC3
