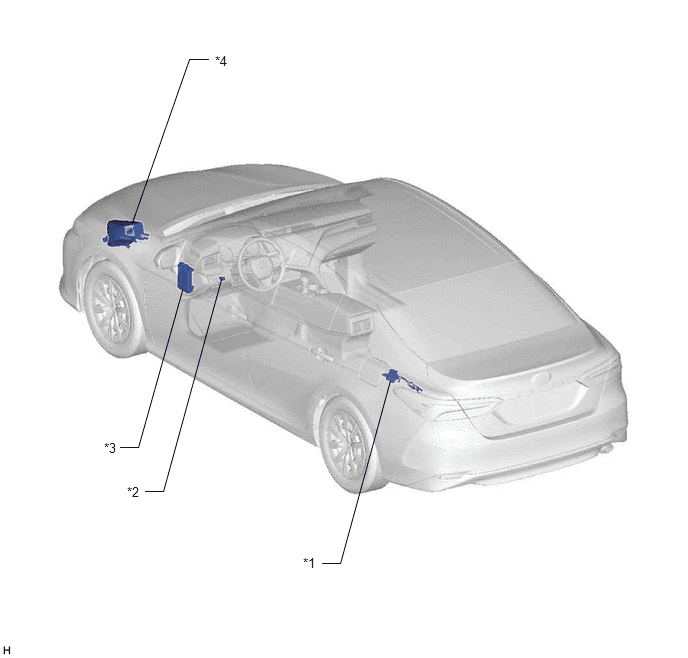

Parts Location [03/2017 - 08/2018]: Illustration

GTY757569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FUEL LID LOCK WITH MOTOR ASSEMBLY *2 FUEL LID OPENER SWITCH
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- FUEL OPN RELAY		 *4 ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- FUEL OPN FUSE
