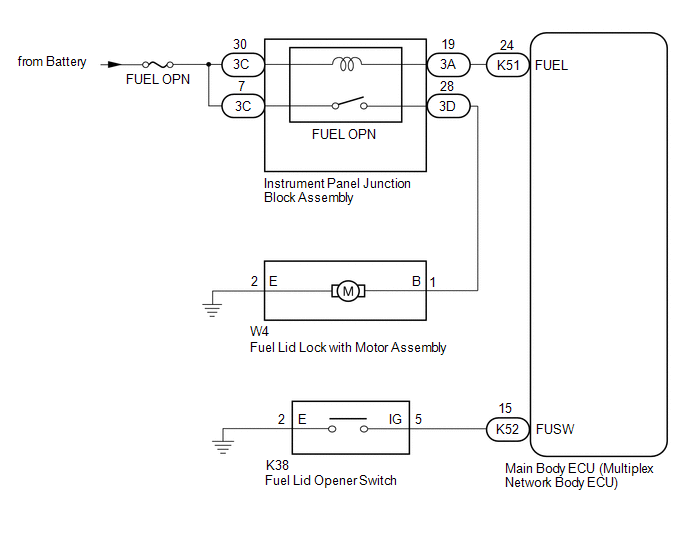

Fuel Lid Opener does not Operate [08/2018 - ]: Wiring Diagram

  1. GTY876883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
