Reassembly [03/2017 - ]: Procedure

HINT:

When installing the luggage compartment door outside garnish protector, heat the luggage compartment door outside garnish using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the luggage compartment door outside garnish.
   1. Remove any remaining double-sided tape from the luggage compartment door outside garnish.
   2. Wipe off any tape adhesive residue with cleaner.

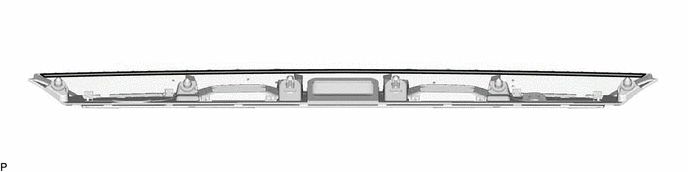

2. Using a brush or felt, apply primer or equivalent to the luggage compartment door outside garnish protector installation area.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Primer

   -

   -

   NOTE:

   • Use a clean brush or felt.
   • Do not touch the luggage compartment door outside garnish until the primer has dried.
3. Remove the release paper from a new luggage compartment door outside garnish protector.

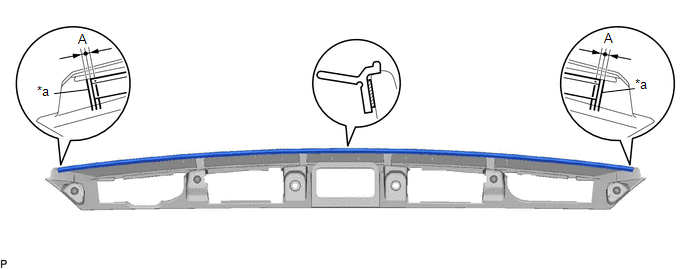

4. Align the luggage compartment door outside garnish protector with the mark on the luggage compartment door outside garnish and install it as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

   -

   -

   Standard Measurement

   Area	Measurement	Area	Measurement
   A	1.0 mm (0.0394 in.)	-	-

   HINT:

   Press the luggage compartment door outside garnish protector firmly to install it.

See step  1 [03/2017 - 06/2017], or see step  1 [06/2017 - 09/2019], or see step  1 [09/2019 - 03/2020], or see step  1 [03/2020 - ]
