Components [03/2017 - ]

Fig 1: Black Out Tape (For Rear Door) Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR ARMREST ASSEMBLY	*2	REAR DOOR ARMREST COVER SUB-ASSEMBLY
*3	REAR DOOR INNER GLASS WEATHERSTRIP	*4	REAR DOOR NO. 2 SERVICE HOLE COVER
*5	REAR DOOR TRIM BOARD SUB-ASSEMBLY	*6	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
*7	NO. 1 DOOR SCUFF PLATE CLAMP	-	-

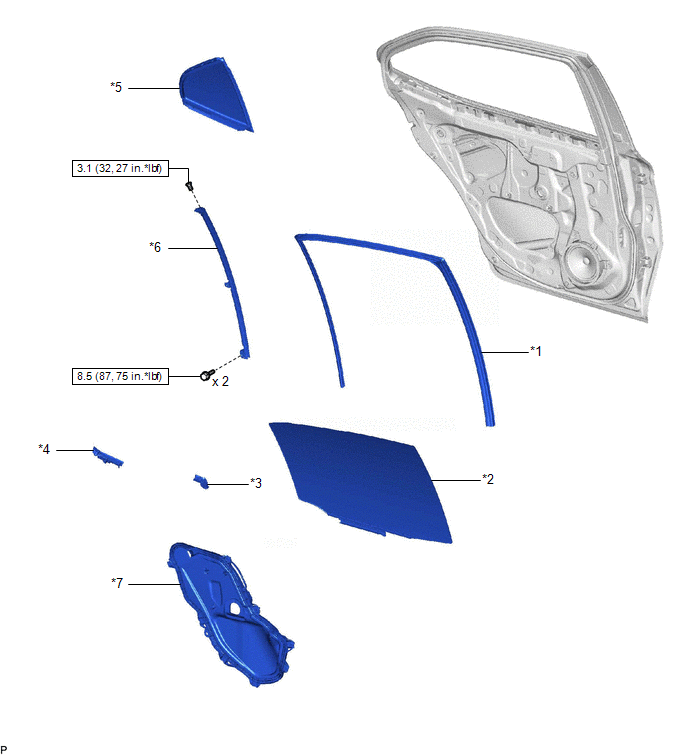

Fig 2: Black Out Tape (For Rear Door) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR DOOR GLASS RUN	*2	REAR DOOR GLASS SUB-ASSEMBLY
*3	REAR DOOR NO. 1 VENT SEAL	*4	REAR DOOR PANEL PROTECTOR
*5	REAR DOOR QUARTER WINDOW GLASS	*6	REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY
*7	REAR DOOR SERVICE HOLE COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

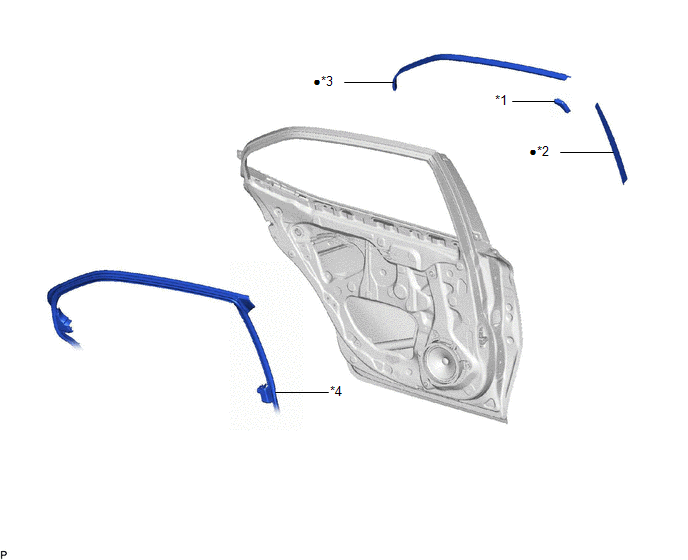

Fig 3: Black Out Tape (For Rear Door) Replacement Components (3 Of 3)

*1	REAR DOOR FRAME GARNISH	*2	REAR DOOR LOWER OUTSIDE STRIPE
*3	REAR DOOR OUTSIDE STRIPE	*4	REAR DOOR WEATHERSTRIP
•	Non-reusable part	-	-
