Components [03/2017 - ]
| *A | For Front Passenger Side | *B | For Driver Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | FRONT ARMREST ASSEMBLY |
| *3 | FRONT DOOR ARMREST COVER SUB-ASSEMBLY | *4 | FRONT DOOR INNER GLASS WEATHERSTRIP WITH FRONT DOOR VENT SEAL |
| *5 | FRONT DOOR LOWER FRAME BRACKET GARNISH | *6 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
| *7 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *8 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
| Callout | Description | Callout | Description |

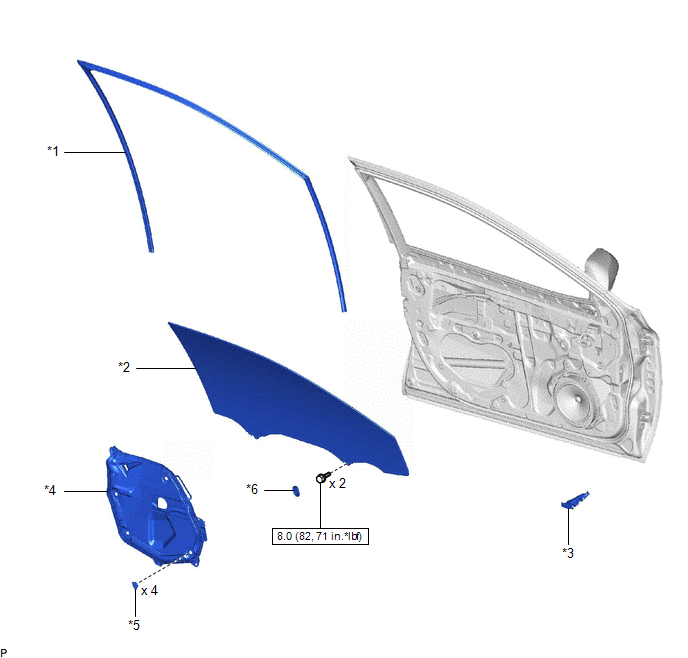

| *1 | FRONT DOOR GLASS RUN | *2 | FRONT DOOR GLASS SUB-ASSEMBLY |
| *3 | FRONT DOOR PANEL PROTECTOR | *4 | FRONT DOOR SERVICE HOLE COVER |
| *5 | FRONT DOOR WEATHERSTRIP CLIP | *6 | HOLE PLUG |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

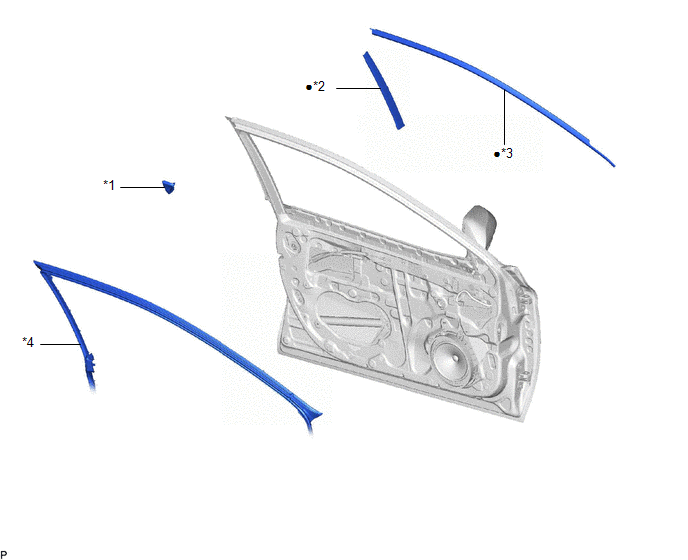

| *1 | DOOR FRAME GARNISH | *2 | FRONT DOOR NO. 2 STRIPE |
| *3 | FRONT DOOR NO. 3 STRIPE | *4 | FRONT DOOR WEATHERSTRIP |
| • | Non-reusable part | - | - |
