Adjustment [03/2017 - ]: Procedure

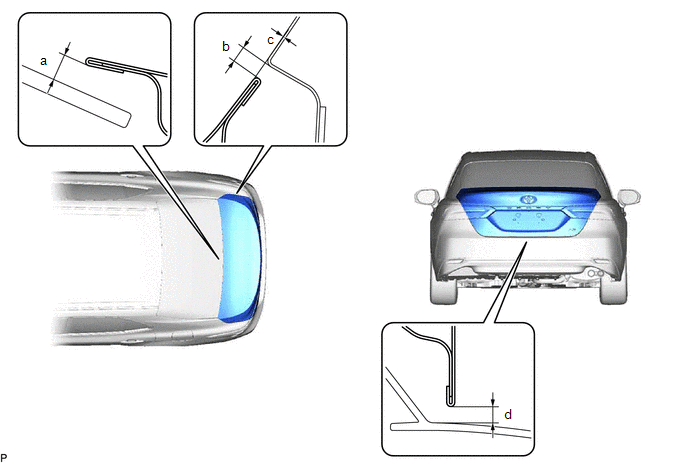

1. Check that the clearance measurements of areas a through d are within each standard range.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   STANDARD CLEARANCE



   Area	Measurement	Area	Measurement
   a	5.8 mm (0.228 in.)	b	2.6 to 5.6 mm (0.102 to 0.220 in.)
   c	-1.4 to 1.6 mm (-0.0551 to 0.063 in.)	d	4.0 to 8.0 mm (0.157 to 0.315 in.)

See step  1

See step  2

See step  5

See step  1 [03/2017 - 09/2019], or see step  1 [09/2019 - ]

See step  2 [03/2017 - 09/2019], or see step  2 [09/2019 - ]

See step  3 [03/2017 - 09/2019], or see step  3 [09/2019 - ]

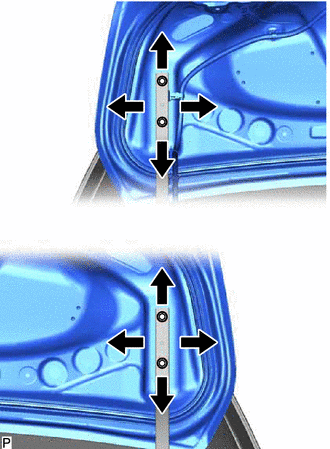

1. Loosen the 4 door side hinge bolts to adjust the door horizontally and vertically.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten the 4 bolts after adjustment.

   Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

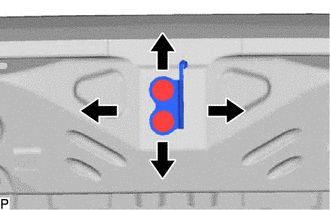

3. Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Using a brass bar and a hammer, hit the striker to adjust its position.
5. Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

   Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

See step  13 [03/2017 - 09/2019], or see step  13 [09/2019 - ]

See step  14 [03/2017 - 09/2019], or see step  14 [09/2019 - ]

See step  15 [03/2017 - 09/2019], or see step  15 [09/2019 - ]

See step  6 [03/2017 - 09/2019], or see step  6 [09/2019 - ]

See step  9 [03/2017 - 09/2019], or see step  9 [09/2019 - ]

See step  10 [03/2017 - 09/2019], or see step  10 [09/2019 - ]
