Components [03/2017 - ]

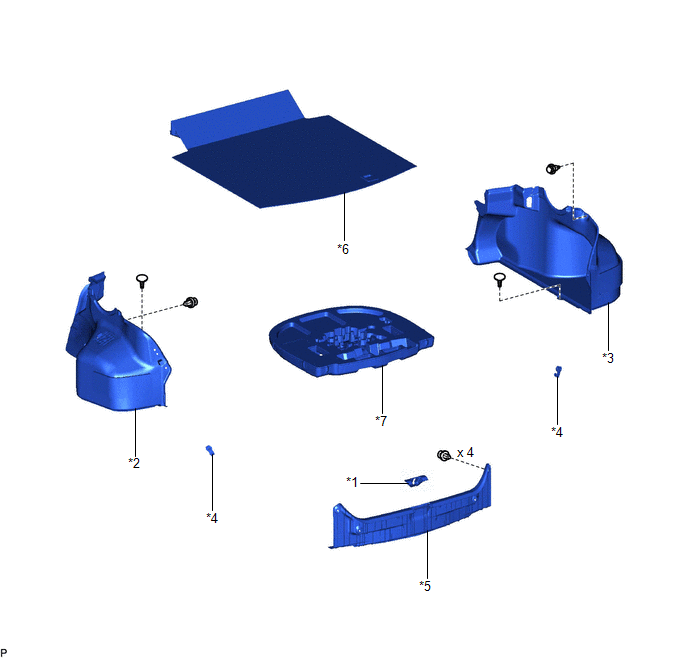

Fig 1: Luggage Compartment Door Support Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LUGGAGE COMPARTMENT DOOR STRIKER COVER	*2	LUGGAGE COMPARTMENT TRIM INNER COVER LH
*3	LUGGAGE COMPARTMENT TRIM INNER COVER RH	*4	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
*5	REAR FLOOR FINISH PLATE	*6	SPARE WHEEL COVER ASSEMBLY
*7	SPARE WHEEL COVER TRAY	-	-

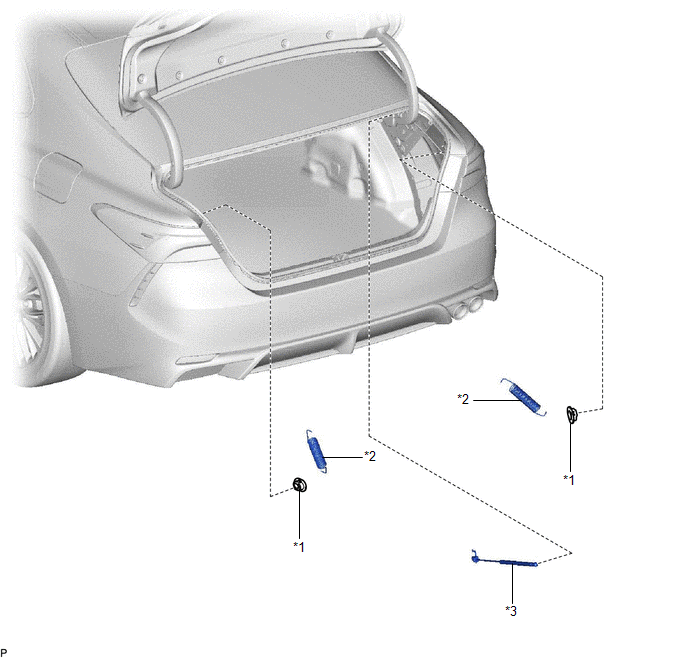

Fig 2: Luggage Compartment Door Support Replacement Components (2 Of 2)

*1	BACK DOOR LOCK UPPER BUSH	*2	BACK DOOR STAY SPRING
*3	LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY	-	-
