Inspection [03/2017 - ]: Procedure

  1. INSPECT LUGGAGE ELECTRICAL KEY SWITCH
    1. Check the switch.
      1. Measure the resistance according to the value(s) in the table below.

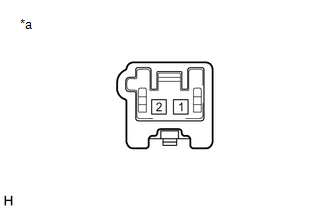

        GTY772992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (Luggage Electrical Key Switch)

        Standard Resistance

        Tester Connection Condition Specified Condition
        1 - 2 Pressed (ON) Below 1 Ω
        1 - 2 Not pressed (OFF) 10 kΩ or higher

        If the result is not as specified, replace the luggage electrical key switch.
