Luggage Compartment Door Opener Outer Switch
>>
Components [03/2017 - ]
Components [03/2017 - ]

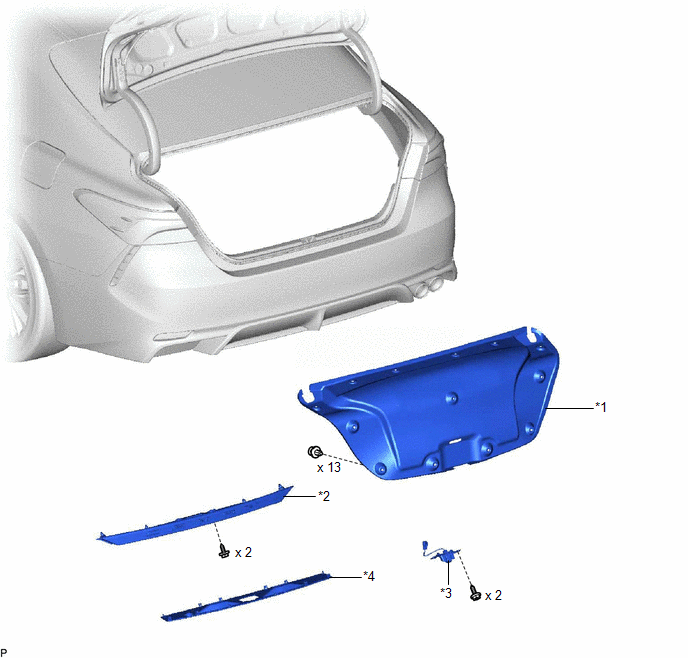

Fig 1: Luggage Compartment Door Opener Outer Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
LUGGAGE COMPARTMENT DOOR COVER
*2
LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY
*3
LUGGAGE ELECTRICAL KEY SWITCH
*4
NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
