Components [03/2017 - ]

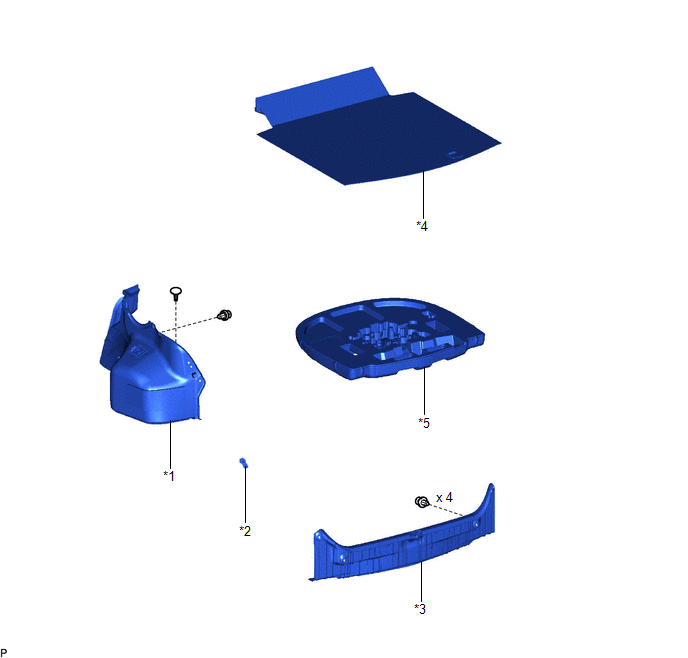

Fig 1: Fuel Lid Opener Motor Assembly Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LUGGAGE COMPARTMENT TRIM INNER COVER LH	*2	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
*3	REAR FLOOR FINISH PLATE	*4	SPARE WHEEL COVER ASSEMBLY
*5	SPARE WHEEL COVER TRAY	-	-

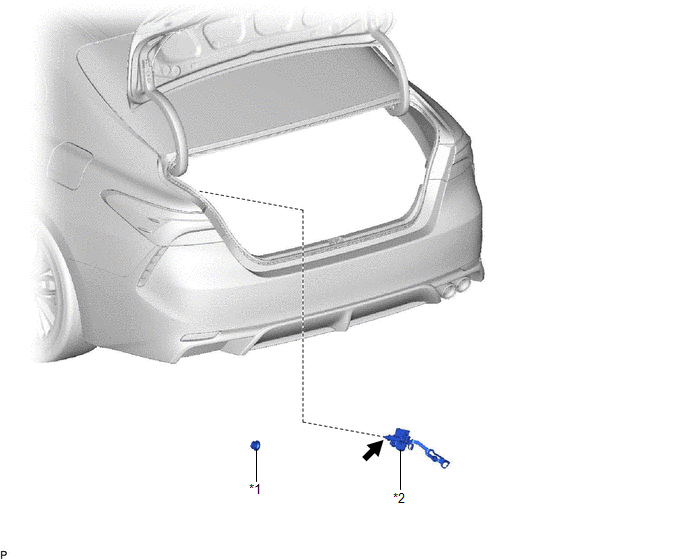

Fig 2: Fuel Lid Opener Motor Assembly Replacement Components (2 Of 2)

*1	FUEL FILLER OPENING LID LOCK RETAINER	*2	FUEL LID LOCK WITH MOTOR ASSEMBLY
	MP grease	-	-
