On-Vehicle Inspection [03/2017 - ]: Procedure
- INSPECT HOOD SUB-ASSEMBLY

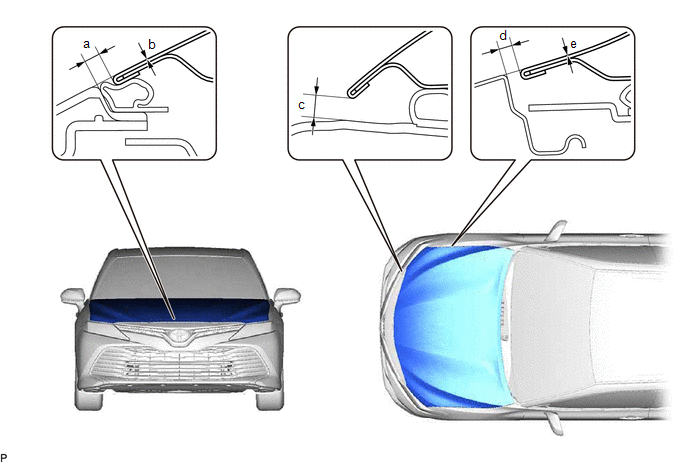

- Check that the clearance measurements of areas a through e are within each standard range.STANDARD CLEARANCE
Area Measurement Area Measurement a 2.8 to 6.8 mm (0.110 to 0.268 in.) b -2 to 2 mm (-0.0787 to 0.0787 in.) c 5.9 to 9.9 mm (0.232 to 0.390 in.) d 2.5 to 5.5 mm (0.0984 to 0.217 in.) e -1.5 to 1.5 mm (-0.0591 to 0.0591 in.) - -
- Check that the clearance measurements of areas a through e are within each standard range.
