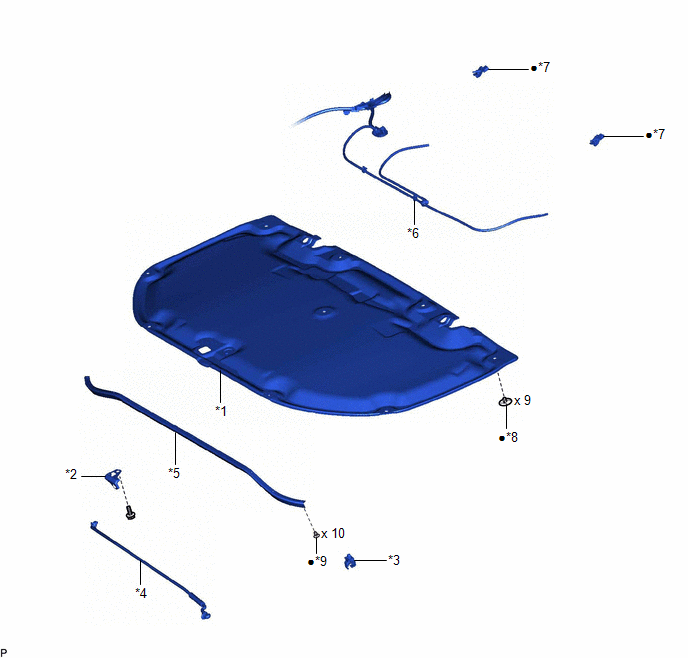

| *1 |
HOOD INSULATOR |
*2 |
HOOD STAY BRACKET RH |
| *3 |
HOOD STAY HOLDER |
*4 |
HOOD SUPPORT ASSEMBLY |
| *5 |
HOOD TO RADIATOR SUPPORT SEAL |
*6 |
WASHER HOSE ASSEMBLY |
| *7 |
WASHER NOZZLE SUB-ASSEMBLY |
*8 |
HOOD INSULATOR CLIP |
| *9 |
HOOD TO RADIATOR SUPPORT SEAL CLIP |
- |
- |
| • |
Non-reusable part |
- |
- |
