Components [03/2017 - 10/2020]

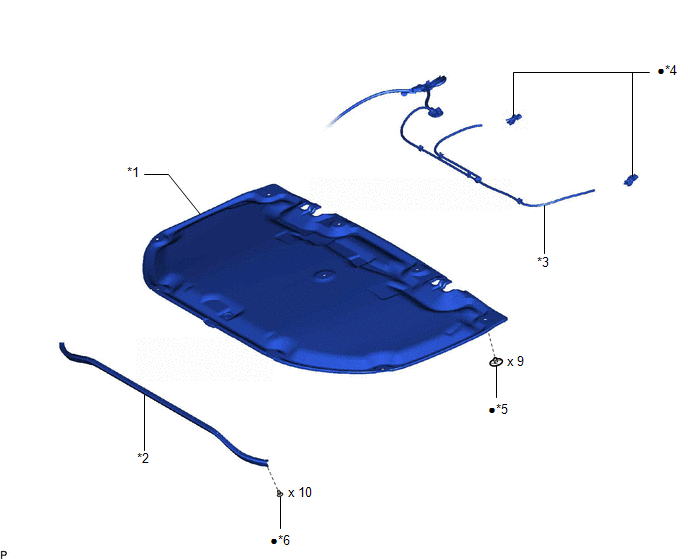

Fig 1: Hood Replacement Components [03/2017 - 10/2020] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HOOD INSULATOR	*2	HOOD TO RADIATOR SUPPORT SEAL
*3	WASHER HOSE ASSEMBLY	*4	WASHER NOZZLE SUB-ASSEMBLY
*5	HOOD INSULATOR CLIP	*6	HOOD TO RADIATOR SUPPORT SEAL CLIP
•	Non-reusable part	-	-

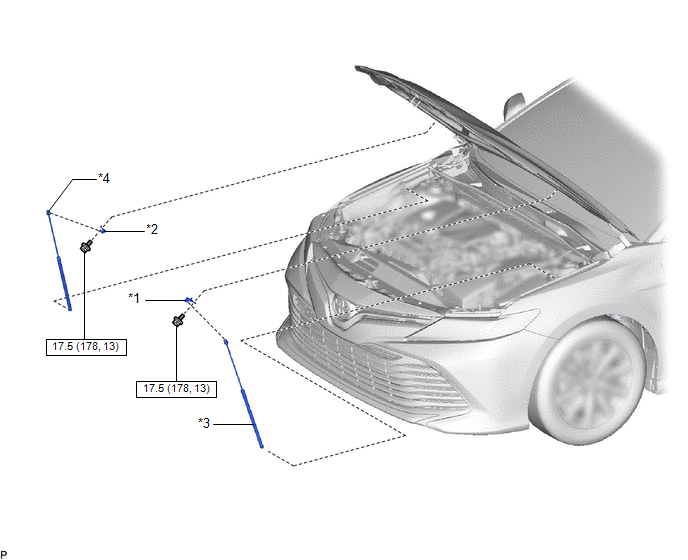

Fig 2: Hood Replacement Components With Torque Specifications [03/2017 - 10/2020] (2 Of 2)

Callout	Description	Callout	Description
*1	HOOD STAY BRACKET LH	*2	HOOD STAY BRACKET RH
*3	HOOD SUPPORT ASSEMBLY LH	*4	HOOD SUPPORT ASSEMBLY RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
