Components [03/2017 - 08/2018]

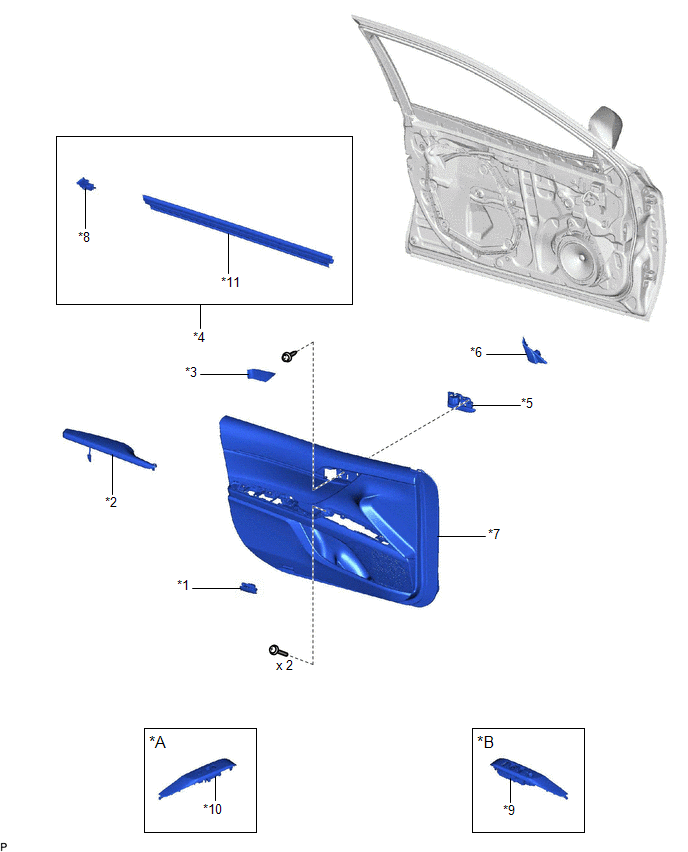

| *A | For Front Passenger Side | *B | For Driver Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | FRONT ARMREST ASSEMBLY |
| *3 | FRONT DOOR ARMREST COVER SUB-ASSEMBLY | *4 | FRONT DOOR INNER GLASS WEATHERSTRIP WITH FRONT DOOR VENT SEAL |
| *5 | FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY | *6 | FRONT DOOR LOWER FRAME BRACKET GARNISH |
| *7 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY | *8 | FRONT DOOR VENT SEAL |
| *9 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *10 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
| *11 | FRONT DOOR INNER GLASS WEATHERSTRIP | - | - |

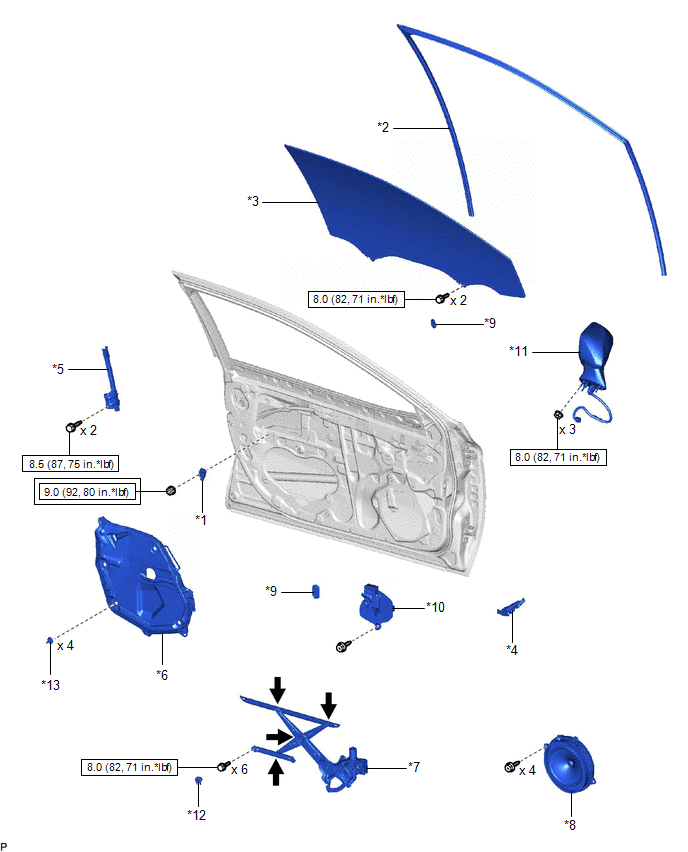

| Callout | Description | Callout | Description |
| *1 | DOOR SIDE AIRBAG SENSOR | *2 | FRONT DOOR GLASS RUN |
| *3 | FRONT DOOR GLASS SUB-ASSEMBLY | *4 | FRONT DOOR PANEL PROTECTOR |
| *5 | FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY | *6 | FRONT DOOR SERVICE HOLE COVER |
| *7 | FRONT DOOR WINDOW REGULATOR ASSEMBLY | *8 | FRONT NO. 1 SPEAKER ASSEMBLY |
| *9 | HOLE PLUG | *10 | OUTER MIRROR INSTALL HOLE COVER |
| *11 | OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER | *12 | FRONT DOOR NO. 2 SERVICE HOLE COVER |
| *13 | FRONT DOOR WEATHERSTRIP CLIP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| MP grease | - | - |
| Callout | Description | Callout | Description |

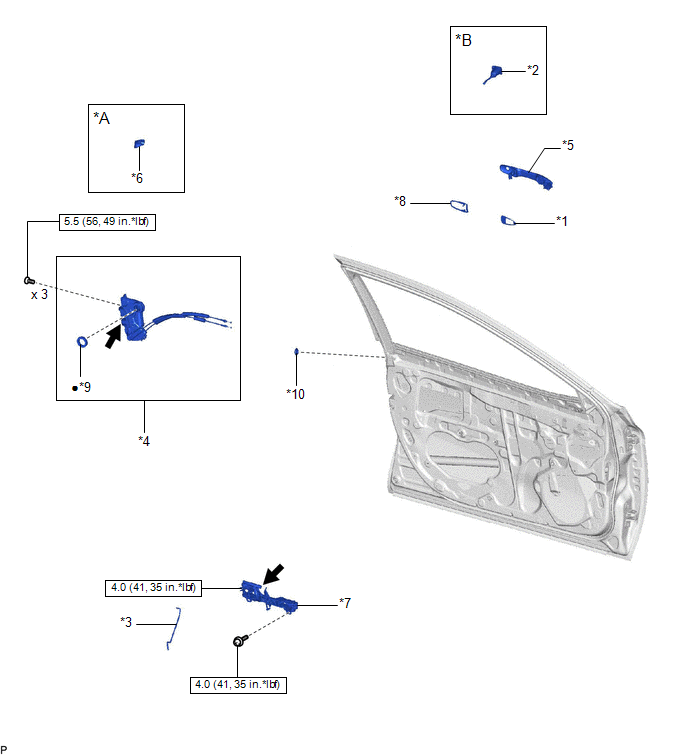

| *A | For Front Passenger Side | *B | For Driver Side |
| *1 | FRONT DOOR FRONT OUTSIDE HANDLE PAD | *2 | FRONT DOOR LOCK CYLINDER ASSEMBLY |
| *3 | FRONT DOOR LOCK OPEN ROD | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY |
| *5 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY | *6 | FRONT DOOR OUTSIDE HANDLE COVER |
| *7 | FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY | *8 | FRONT DOOR REAR OUTSIDE HANDLE PAD |
| *9 | DOOR LOCK WIRING HARNESS SEAL | *10 | HOLE PLUG |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |

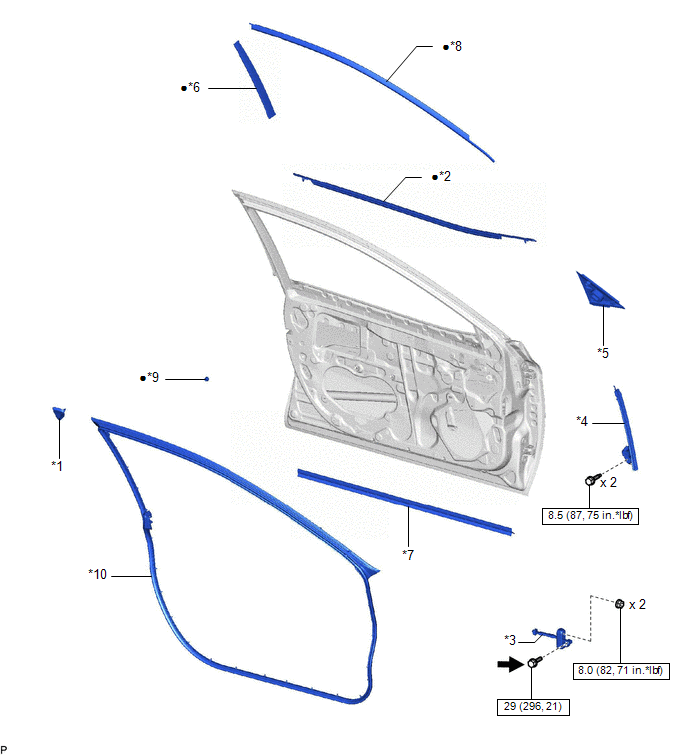

| Callout | Description | Callout | Description |
| *1 | DOOR FRAME GARNISH | *2 | FRONT DOOR BELT MOULDING ASSEMBLY |
| *3 | FRONT DOOR CHECK ASSEMBLY | *4 | FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY |
| *5 | FRONT DOOR FRONT LOWER FRAME UPPER COVER | *6 | FRONT DOOR NO. 2 STRIPE |
| *7 | FRONT DOOR NO. 2 WEATHERSTRIP | *8 | FRONT DOOR NO. 3 STRIPE |
| *9 | FRONT DOOR PANEL CUSHION | *10 | FRONT DOOR WEATHERSTRIP |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |

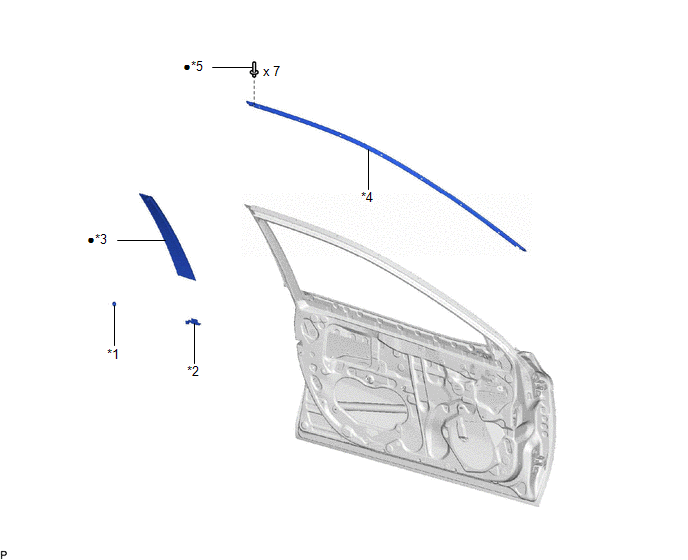

| *1 | DOOR WINDOW FRAME MOULDING CLIP | *2 | FRONT DOOR REAR OUTSIDE SEAL |
| *3 | FRONT DOOR REAR WINDOW FRAME MOULDING | *4 | FRONT DOOR UPPER WINDOW FRAME MOULDING |
| *5 | RIVET | - | - |
| • | Non-reusable part | - | - |
