Adjustment [03/2017 - 10/2020]: Procedure

INSPECT FRONT DOOR

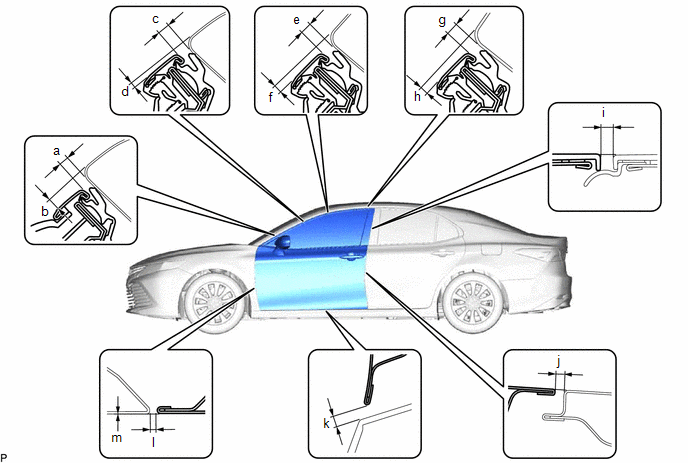

Check that the clearance measurements of areas a through m are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	3.3 to 6.7 mm (0.130 to 0.264 in.)	b	3.5 to 7.5 mm (0.138 to 0.295 in.)
c	3.3 to 6.7 mm (0.130 to 0.264 in.)	d	0.2 to 4.2 mm (0.0079 to 0.165 in.)
e	3.3 to 6.7 mm (0.130 to 0.264 in.)	f	1.2 to 5.2 mm (0.0472 to 0.205 in.)
g	3.3 to 6.7 mm (0.130 to 0.264 in.)	h	1.1 to 5.1 mm (0.0433 to 0.201 in.)
i	2.3 to 6.3 mm (0.0906 to 0.248 in.)	j	4.1 mm (0.161 in.)
k	5.3 mm (0.209 in.)	l	2.6 to 5.0 mm (0.102 to 0.197 in.)
m	-1.2 to 1.2 mm (-0.0472 to 0.0472 in.)	-	-

ADJUST FRONT DOOR

NOTE:

Make sure to turn the ignition switch off before adjusting the door lock strikers.

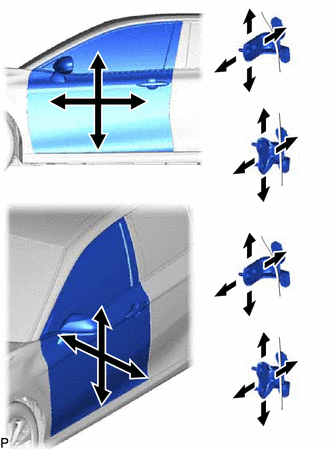

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
Loosen the 4 hinge bolts on the door and adjust the door position.
Tighten the 4 hinge bolts on the door after adjustment.
Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

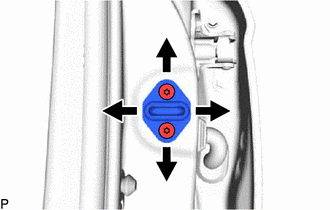

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
