Removal [03/2017 - ]: Procedure

Refer to REMOVAL [03/2017 - 06/2017] , or refer to REMOVAL [06/2017 - 09/2019] , or refer to REMOVAL [09/2019 - 03/2020] , or refer to REMOVAL [03/2020 - ]

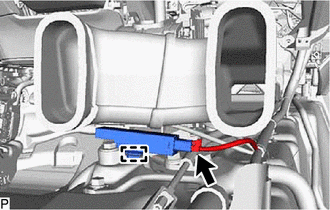

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the clamp to remove the No. 2 indoor electrical key antenna assembly.
   NOTE:

   Be careful when removing the No. 2 indoor electrical key antenna assembly. If the No. 2 indoor electrical key antenna assembly is dropped, replace it with a new one.
