Removal [06/2017 - ]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [06/2017 - ]

  2. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to REMOVAL [06/2017 - 09/2019] , or refer to REMOVAL [09/2019 - 03/2020] , or refer to REMOVAL [03/2020 - ]

  3. REMOVE REFRESHING SEAT SWITCH

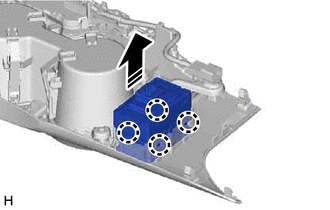

    1. Disengage the 4 claws to remove the refreshing seat switch from the rear upper console panel sub-assembly.
      GTY740840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
