Seats - Service Information (2 Of 2) (Except Hybrid)
>>
POWER SEAT SWITCH (for TMMK Made Power Seat)
>>
Components [06/2017 - ]
Components [06/2017 - ]

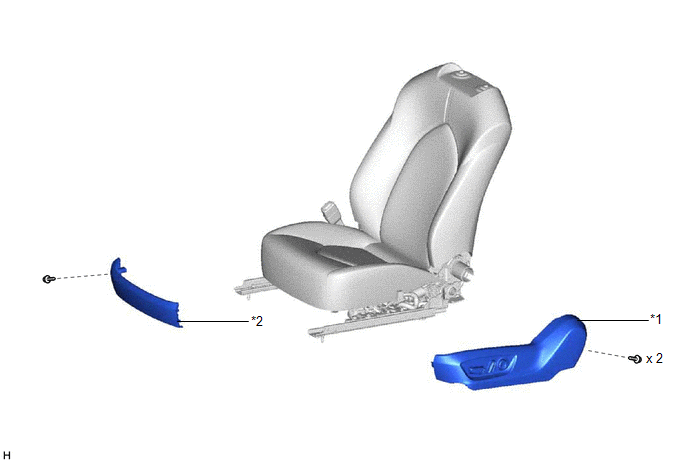

Fig 1: Power Seat Switch (For TMMK Made Power Seat) Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT SEAT CUSHION SHIELD
*2
FRONT SEAT FRONT CUSHION SHIELD

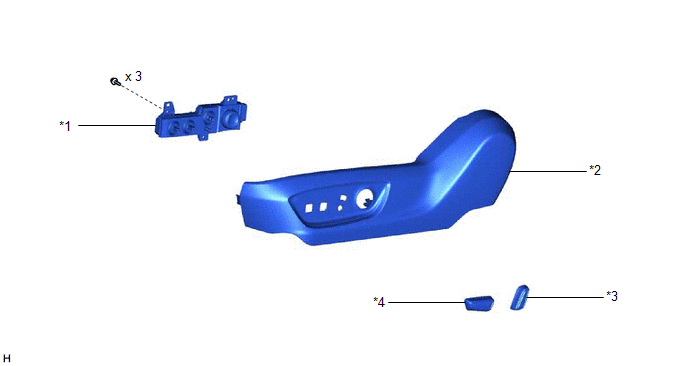

Fig 2: Power Seat Switch (For TMMK Made Power Seat) Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT POWER SEAT SWITCH
*2
FRONT SEAT CUSHION SHIELD
*3
RECLINING POWER SEAT SWITCH KNOB
*4
SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
